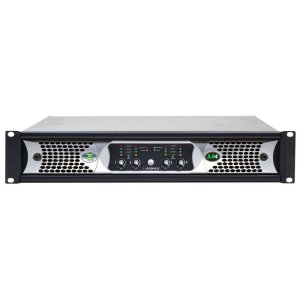

nX Series 4ch 12kW Network Power Amplifier w/Protea DSP

Ashly’s new line of nX Power Amplifiers feature lightweight, energy efficient Class D switching amplifier technology combined with a switch mode power supply. The nX amplifiers are available in three product families designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas,
performance venues, worship spaces and convention centers.

nX Series is the base level amplifier, available in either 2 or
4-channel models. Use rear panel DIP switches to program each channel output for either High-Z (70V or 100V Constant Voltage) or Low-Z (stable down to 2 Ohms) operation. When in Sleep Mode, the nX amplifiers draw less than 1 Watt.

nXp Series amplifiers share the network features of the nXe series and add 32-bit SHARC DSP processing (with 48kHz & 96kHz sampling) as standard equipment for comprehensive audio processing, with built-in signal generator for test tone, and noise-masking. Plus precision load impedance monitoring on each amplifier channel output.

Max Output Power Per Channel, EIAJ Test Standard, 1kHz, 20Hz-20kHz, 1%THD, Low Z Output, All Channels Driven
2 Ohms: 3,000W
4 Ohms: 2,000W
8 Ohms: 1,250W

Low Z output, Bridge Mode, 20Hz-20kHz, 1%THD, All Channels Driven
4 Ohms: 6,000W

70V, 100V Output, All Channels Driven
70V (per channel): 2,450W
100V (per channel): 1,250W

Maximum Current Draw
All Channels Driven, Divide by 2 for 240VAC
Typical: 29.5A

Voltage Gain: Selectable at 26dB, 32dB, 38dB, or 1.4V
Damping Factor: >250 (8 Ohms load <1kHz)
Frequency Response: 20Hz-20kHz, +/-0.05dB
Balanced Input Connector: Euroblock 3.5mm, 1/4” TRS and XLR Combo jack
Input Impedance: 10K Ohms
Maximum Input Level: +21dBu
Speaker Output Connector: Neutrik® speakON®
Weight: < 28lbs (12.7kg)
Dimensions: 19W x 3.5H x 16.84D in (483 x 89 x 428mm)
