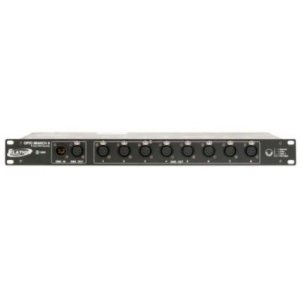

8-way DMX Distributor/Booster with 5 Pin XLR Input Jacks

The OPTO BRANCH 8™is a 19” single rack space, 8-way DMX distributor/booster with 5-pin XLR input and output jacks. This unit takes the incoming DMX signal and splits it to eight (8) separate outputs, each providing a total electrical isolation of up to 1000V between different branches in a daisy chain group. This greatly decreases problems with ground loops and efficiently buffers and magnifies the DMX signal, making it more accurate and reliable. All outputs include 5-pin XLR sockets, which are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal.

,
8 Way DMX Data Splitter

. Fully DMX-512 (1990) Compliant

. Buffers and Distributes DMX Data Reliably

. DMX Status Indicator

. (1) 5pin Neutrik XLR Isolated Input

. (1) 5pin Neutrik XLR Passive Loop Output

. (8) 5pin Neutrik XLR Isolated Outputs

. Power: Auto Switching, 100-240V 50/60Hz

. powerCON power input

. On/Off Power Switch

. 1U 19” Rack Mount

. Dimensions: 19" x 1.75" x 5.71" (482.5 x 44.5 x 145mm)

. Weight: 4.4lbs (2kg)
