Electro Voice

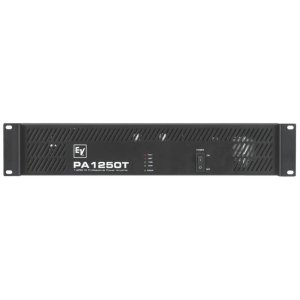

PA Series Single-Channel 250W Power Amplifier

Model: PA 1250T 120V
UPC: 800549444293
250 W mono for 70/100 V lines
Compact 2 RU design
Cool-running, saturation-free power for distributed installations
Ideal for sound reinforcement, paging, and life safety
Integrated rack ears for direct mounting
Phoenix-type inputs and outputs
Selectable 50 Hz or 300 Hz high-pass filter
Stepped rear-panel level attenuation
Thermal protection, peak limiting, turn-on delay
Three-stage front-to-rear fans
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Customers who bought this product also purchased

Model: TM08B
Please log in to see your price
Model: M-8S
Please log in to see your price
Model: BLX24R/SM58-H10
Please log in to see your price
Model: BLX24R/SM58-H9
Please log in to see your price
Model: XLI1500
Please log in to see your price
Model: AT875R
Please log in to see your price

Product Properties

  • Product Type
  • Install Amplifier

Description:

The PA series of commercial power amplifiers is a favorite of installers everywhere for sound reinforcement, background music, paging, and public address systems. Featuring low-distortion amplifier electronics that are bridgeable for flexible power allocation, PA series amps provide a wide dynamic range with excellent headroom. An onboard limiter spares both amplifier and speakers from damaging transients, and a comprehensive thermal/electrical protection package ensures long-haul dependability. Equipped with Phoenix-style terminals for fast, easy hookup, PA series amps are housed in compact, rack-ready 2RU chassis with ample internal airflow and exceptionally quiet multi-stage fans. Models are available in a variety of output powers and channel configurations, several of which provide 70/100V output using low-distortion transformers. Offering outstanding versatility and longterm reliability, the PA series is a remarkable value for any installation application.

Continuous Rated Power (1 kHz, THD 1%) 70v: 270 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 70v: 250 Watts
Crosstalk: < < -75 dB
DIM 30: < 0.1 %
Frequency Response: 65Hz-20kHz
Input Impedance (Balanced): > 20 k?
Input Sensitivity: 0 dBu
Intermodulation Distortion (SMPTE): < 0.1 %
Network Control (IRIS-Net): No
Number of Channels: 1
Signal-to-Noise Ratio (A-weighted): 103 dB
Slew Rate: 41/61 V/µs
Total Harmonic Distortion: < 0.1 %
Height: 2RU 88 mm (3.46")
Width: 483 mm (19.02")
Depth: 406 mm (15.98")
Weight Net: 16.5 kg (36.38 lbs)
