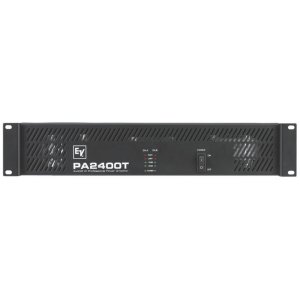

PA Series Dual-Channel 400W Power Amplifier

The PA series of commercial power amplifiers is a favorite of installers everywhere for sound reinforcement, background music, paging, and public address systems. Featuring low-distortion amplifier electronics that are bridgeable for flexible power allocation, PA series amps provide a wide dynamic range with excellent headroom. An onboard limiter spares both amplifier and speakers from damaging transients, and a comprehensive thermal/electrical protection package ensures long-haul dependability. Equipped with Phoenix-style terminals for fast, easy hookup, PA series amps are housed in compact, rack-ready 2RU chassis with ample internal airflow and exceptionally quiet multi-stage fans. Models are available in a variety of output powers and channel configurations, several of which provide 70/100V output using low-distortion transformers. Offering outstanding versatility and longterm reliability, the PA series is a remarkable value for any installation application.

Amplifier Gain: 34 dB
Continuous Rated Power (1 kHz, THD 1%): 4? 430 Watts
Continuous Rated Power (1 kHz, THD 1%): 70v 430 Watts
Continuous Rated Power (1 kHz, THD 1%): 8? 215 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%): 4? 400 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%): 70v 400 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%): 8? 200 Watts
Crosstalk: < < -75 dB
DIM 30: < 0.1 %
Frequency Response: 65Hz - 40kHz
Impedance: 4/8 ? 70V/100V
Input Impedance (Balanced): > 20 k?
Input Sensitivity: 0 dBu (775mV) @ rated output power or voltage, 1kHz
Intermodulation Distortion (SMPTE): < 0.1 %
Network Control (IRIS-Net): No
Number of Channels: 2
Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz 400/200 W 70V/100V-400
Rated output power (*rated load) THD < 1%, 1kHz 430/215 W 70V/100V-430
Signal-to-Noise Ratio (A-weighted): 103 dB
Slew Rate: 25 V/µs 70V-46, 100V-65
Total Harmonic Distortion: < 0.1 %
Height: 2RU 88 mm (3.46")
Width: 483 mm (19.02")
Depth: 406 mm (15.98")
Weight Net: 26 kg (57.32 lbs)
