AKG

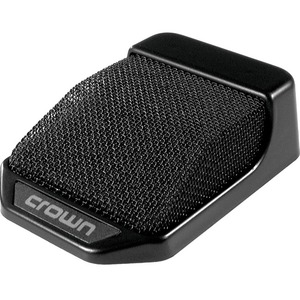

PCC Series Supercardioid Boundary Mic with Mute Switch

Brand: AKG
Model: PCC130 SW
UPC: 885038024903
Products Variants:
CROWN PCC®technology (phase coherent cardioid) prevents phase interference due to table sound reflections
Exceptional performance and small size
Supercardioid polar pattern reduces background noise and provides an impressive gain-before-feedback
Three-position bass-tilt switch
Wide and smooth frequency response
Please log in to see your price
Specification Sheet Specification Sheet
Specification Sheet (Download)

Related products

Customers who bought this product also purchased

Product Properties

  • Bullet points
  • CROWN PCC®technology (phase coherent cardioid) prevents phase interference due to table sound reflections
    Exceptional performance and small size
    Supercardioid polar pattern reduces background noise and provides an impressive gain-before-feedback
    Three-position bass-tilt switch
    Wide and smooth frequency response
  • Product Type
  • Boundary Microphone

Description:

The CROWN PCC®-130SW has a silent-operating membrane switch which is normally off. The switch can be configured for touch on/off, momentary on or momentary off. A high-intensity LED lights when the unit is on. The CROWN PCC®-130SW is intended for multiple-microphone use on a conference table where each person wants control of his or her microphone. The microphone attenuates 70 dB when the switch is in the off position.

Polar pattern: PCC®-130SW: Supercardioid

Frequency range: 50 to 20,000 Hz

Sensitivity: 22 mV/Pa (-30 dBV)

Max. SPL: 120 dB

Equivalent noise level: 22 dB-A

Signal/noise ratio: 72 dB (A-weighted)

Impedance: 150 ohms

Power requirement: 12 to 48 V phantom power to DIN/IEC

Connector Switchcraft: TB3M

Cable: 269 g (9.5 oz.) incl. cable

Finish: satin black

Dimensions: 6.4 x 8.9 x 2.5 cm (2.5 x 3.49 x 0.988 in.)

Net weight: 269 g (9.5 oz.) incl. cable
