Zone Paging Module for PCM2000 Zone Paging System

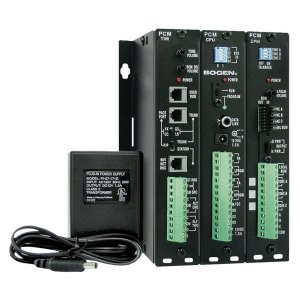

The Bogen PCMZPM module provides three zones of paging to the PCM2000 system. Up to three PCMZPM modules can be used in a basic system to provide up to nine zones of paging. Additional modules can be combined with a PCMCPU module in a satellite system when more than nine zones are required. Each PCMZPM module lets you set the talkback option (on or off) and back-
ground music options for each zone. Each zone can be connected or disconnected from the background music bus. Furthermore, the entire module can be disconnected from the bus and a local background music source substituted. Each module can also be configured for high-power operation (when using passive speakers and a central amplifier), or low-power operation (supplying low level signals to amplified speakers). A relay driver is provided for each zone,
becoming active when the zone is active.
