PZM Series Hemispherical Wall Plate Boundary Mic with Mic Level Output

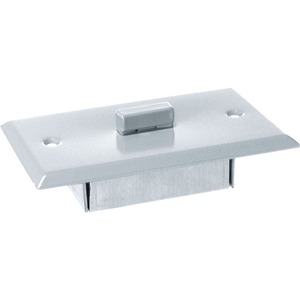

The CROWN PZM®-11 presents a low-cost solution for security and surveillance applications. Mounted on a standard wall plate the CROWN PZM®-11 doesn’t look like a microphone but rather an ordinary light switch.

Like other Pressure Zone Microphones, the CROWN PZM®-11 utilizes the Pressure Recording Process™in which a miniature condenser microphone capsule is mounted very close to a sound reflecting plate or boundary. The benefits are a wide, smooth frequency response free of phase interference, excellent clarity and “reach”, and consistent pickup anywhere around the microphone. Intelligibility is excellent, with low frequencies below the voice range rolled off to reduce the pickup of heating, ventilation or air-conditioning rumble (HVAC noise). The high-frequency response is boosted slightly to aid clarity and articulation. Electronics on the rear of the plate offer screw terminals, eliminating the need for connectors.

The CROWN PZM®-11 has a mic-level output and is powered by 12-48 V phantom power.

Polar pattern: Hemispherical

Frequency range: 80 to 20,000 Hz

Sensitivity: 5 mV/Pa (-46 dBV)

Max. SPL: 120 dB

Equivalent noise level: 26 dB-A

Signal/noise ratio: 68 dB (A-weighted)

Impedance: 225 ohms

Connector: screw terminal

Finish: Off-white. May be painted any color.

Dimensions: 11.506 x 7.05 x 2.946 cm (4.53 x 2.7 x 1.16 in.)

Net weight: 71 g (2.5 oz.)
