RF Spotlight Antenna

Reduce Interference, Maximize Available Spectrum

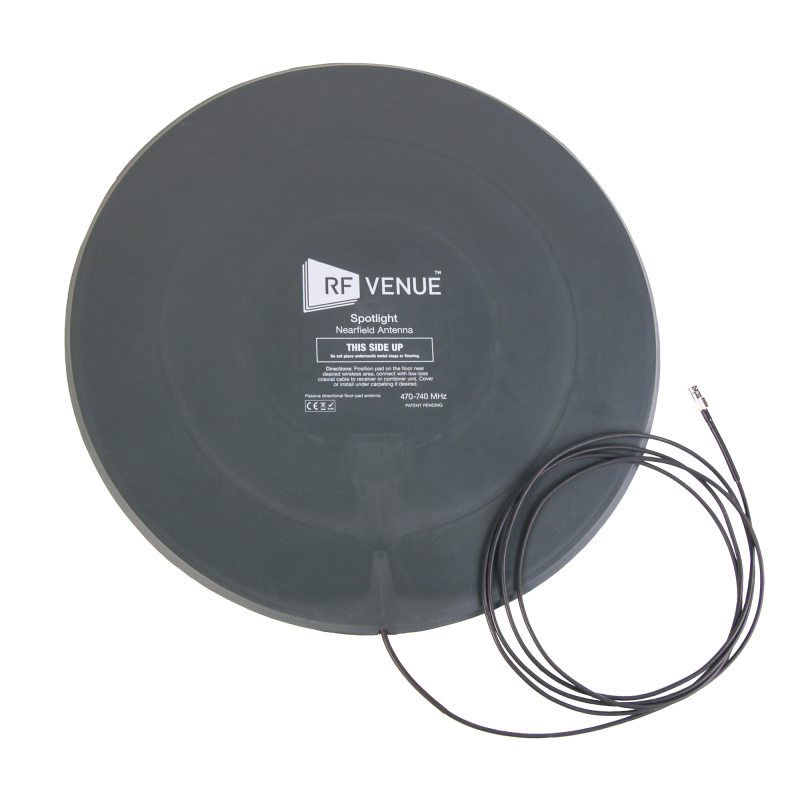

The patent-pending RF Spotlight™ Antenna is a low profile floor pad antenna which is designed for < 150 ft (~ 50m) range wireless applications. Perfect for medium to small stages, hotel breakout rooms, lecture rooms, sanctuaries and anywhere long distance coverage is not required. RF Spotlight is especially effective in crowded RF environments or where multiple wireless systems inter-operating across the facility limit available spectrum.

The RF Spotlight™ Antenna has a hemispherical pattern and is made of a tough PVC material with a 50 pound tensile strength rated cabled connector that meets the rigors of production and rental applications. It's operating range is a function of several factors, including output power of your transmitter (e.g. 10 mw vs. 30 mw), coaxial cable type and length, and any nearby obstructions. The RF Spotlight is strong enough to pickup signals through most types composite or wood deck stages and can be placed out of the way in the corner of the stage, installed under a carpet, or wherever convenient to limit foot traffic and maximize signal to noise for your wireless.

Operating frequency: 468-740 MHz
Bandwidth: 272 MHz
Impedance: 50 ?
Pattern type: Floor Omni
Gain: -1 dBd
Transmit Power (max.): 100 W
Connector: BNC female
