RF Venue Rf-explorer-proRf Explorer Pro

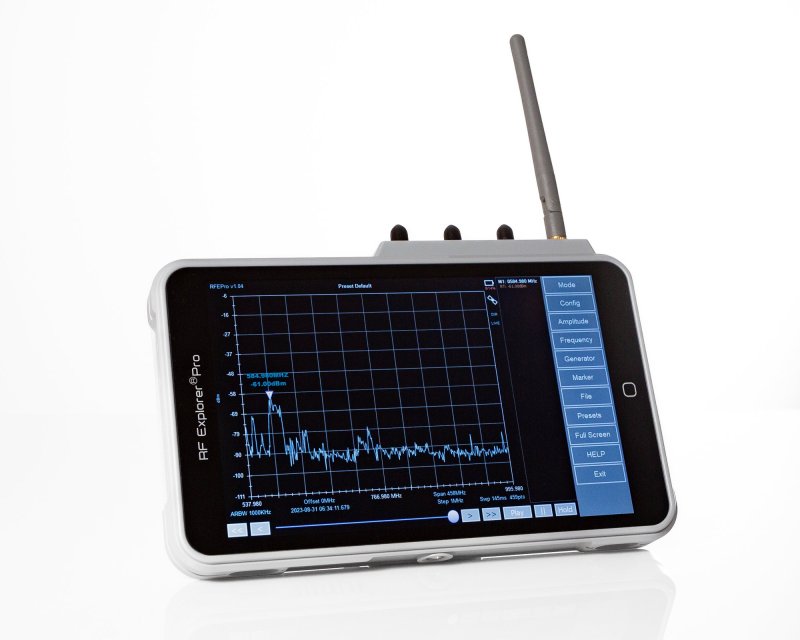

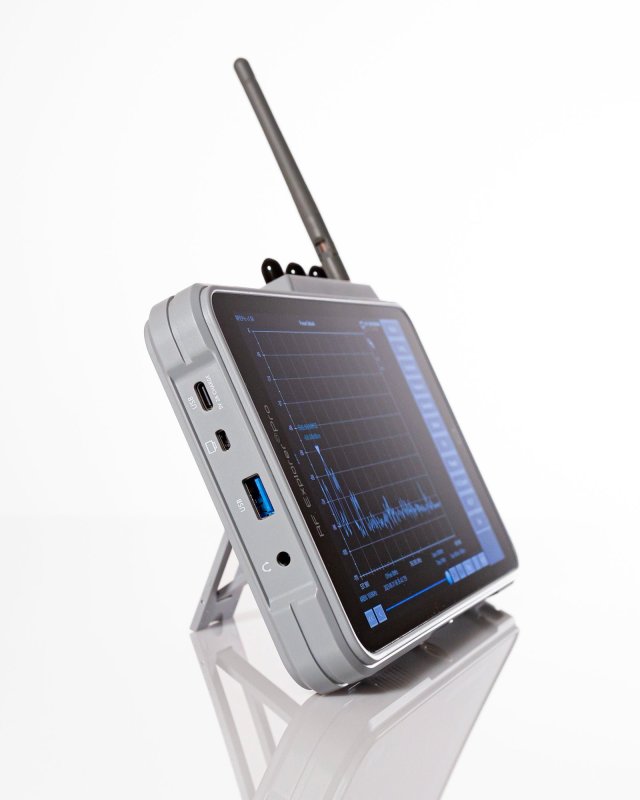

RF Explorer® Pro is a 3rd generation, high-performance instrument for wireless audio system design, deployment, and monitoring. With its integrated 6 GHz Spectrum Analyzer, Tracking Generator, and Frequency Coordination and WiFi Analysis tools, it offers advanced functionality with an intuitive touch screen to support any wireless microphone or in-ear monitor system. It also features advanced modes such as Zero Span, Waterfall 2D and 3D views, and Power Channel, offering enhanced flexibility to handle a wide range of scenarios in any venue. RF Explorer Pro also features a dedicated WiFi Analyzer mode built-in for working with wireless data networks and the ever growing list of live performance tools operating in the 2.4 and 5 GHz frequency bands. WiFi Analyzer mode lets you quickly visualize these often congested frequency bands and identify less occupied channels for configuring your system to avoid problems on stage or with your digital mixing console control. The RF Explorer Pro spectrum analyzer features a rich set of inputs and outputs • SMA Spectrum analyzer input: Interface with BNC adapter or jumper cable to analyze RF from any part of your wireless audio system. Patch into antenna distros, receive antennas, bandpass filters, RF over fiber converters or other sources to directly measure performance of your system, debug issues, and fine tune performance. • HDMI output: Connect the RF Explorer PRO to an external display for monitoring RF performance in real time during an event. This is also useful for system configuration and testing to gauge wireless microphone or in-ear monitor coverage range. • What's included: USB charger and padded carrying case included.
