5.25" Coaxial Open-Ceiling Loudspeaker (Black)

5.25" Coaxial Open-Ceiling Loudspeaker (Black)

Name: 5.25" Coaxial Open-Ceiling Loudspeaker (Black)
SKU: RS500I-BK

Brand: SoundTube Entertainment

Model: RS500I-BK

UPC: 644216202102

Products Variants:

Average senitivity 86.5 dB offers high-output capabilities and reduced amplification costs

Easy-access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position simplifies ordering and inventory tracking

Includes UL listed hanging hardware with cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Also includes Euro-block connector and terminal weather boot.

One 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink

Patented BroadBeam® waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker

Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity

Plated steel grille with protective powder-coated finish for lasting durability

UL 1480 (UEAY), CE and Milspec 810 approved

Weatherized components for indoor and outdoor applications

Please log in to see your price

Specification Sheet

Specification Sheet (Download)

Related products

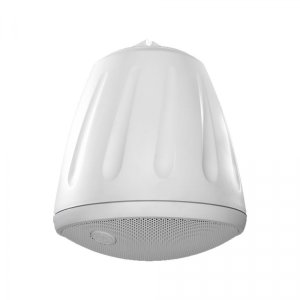

SOUNDTUBE RS1001i-II-T-WH Subw

Model: RS1001I-II-T-WH

Brand:SoundTube Entertainment

Please log in to see your price

Select to compare

View

5.25" Coaxial Open-Ceiling Loudspeaker (White)

Model: RS500I-WH

Brand:SoundTube Entertainment

Please log in to see your price

Select to compare

View

Extended Range Full-Range Pendant Speaker (White)

Model: C67P/T-WH

Brand:JBL

Please log in to see your price

Select to compare

View

Narrow 75° Coverage High Ceiling Pendant Speaker (White)

Model: C67HC/T-WH

Brand:JBL

Please log in to see your price

Select to compare

View

Compact Full-Range Pendant Speaker

Model: C65P/T

Brand:JBL

Please log in to see your price

Select to compare

View

Extended-Bass Pendant Spkr w 6-1/2"

Model: C67P/T

Brand:JBL

Please log in to see your price

Select to compare

View

4" FULL-RANGE PENDANT SPKR, BLK

Model: C64P/T

Brand:JBL

Please log in to see your price

Select to compare

View

Compact Full-Range Pendant Speaker (White)

Model: C65P/T-WH

Brand:JBL

Please log in to see your price

Select to compare

View

Customers who bought this product also purchased

Product Properties

Bullet points
Average senitivity 86.5 dB offers high-output capabilities and reduced amplification costs

Easy-access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position simplifies ordering and inventory tracking

Includes UL listed hanging hardware with cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Also includes Euro-block connector and terminal weather boot.

One 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink

Patented BroadBeam® waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker

Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity

Plated steel grille with protective powder-coated finish for lasting durability

UL 1480 (UEAY), CE and Milspec 810 approved

Weatherized components for indoor and outdoor applications

Product Type
Ceiling Speaker

Description:

These premium loudspeakers are ideal for restaurants/nightclubs, schools and universities, hospitals and other medical facilities, churches, synagogues, theme parks, hospitality establishments, or other public venues. They install quickly and hang easily using provided hardware. BroadBeam®waveguide technology provides 105°coverage. Selectable tap switch enables 25V, 70.7V, and 100V operation, along with direct 8-Ohm connection. Custom paint colors are available.

Surface-mount brackets are available as an option.

Frequency Response(-3 dB): 87 Hz - 22 kHz
Low Frequency(-10 dB): 61 Hz - 22 kHz
Sensitivity: 86.5 dB
Power Capacity RMS: 75 watts
Max SPL dB @ 1 M: 105.5 dB
Nominal Impedance: 8 ohm
Tweeter: 1 in. BroadBeam®
Woofer: 5.25 in. Poly
Connections: Four-pin Euroblock
Height: 298.2 mm (11.74 in)
Diameter: 245.9 mm (9.68 in.)
Weight: 4.3 kg (9.5 lbs)
Colors: Black or white (paintable)
