Shure

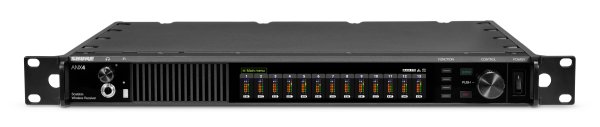

SHURE ANX4US-AC MULTI-CHANNEL RECEIVER

Brand: Shure
Model: TMP-ANX4US
UPC: 042406948845

Scalable Wireless Receiver for use with Axient Digital and ULX-D wireless systems

Receives up to 16 channels of Axient Digital or 24 channels of ULX-D in a single rack space

Channel licenses are perpetual licenses, available in single- and four-channel options (sold separately)*

Purchased channel licenses can be activated in one ANX4 and later removed and activated in another ANX4, as needed, conveniently via ShureCloud user account

Wide tuning range covers 174 MHz to 2 GHz, covering all Axient Digital and ULX-D options (except for the ULX-D 902 MHz band)

All Axient Digital or ULX-D features included**

Large, 6.6-inch front panel color display

Five-segment Channel Quality meter displays RF signal-to-noise

¼-inch front-panel headphone connector for monitoring with Dante Browse (for both Axient Digital and ULX-D)

Streamlined and cost-saving antenna setup for large-scale wireless deployment scenarios

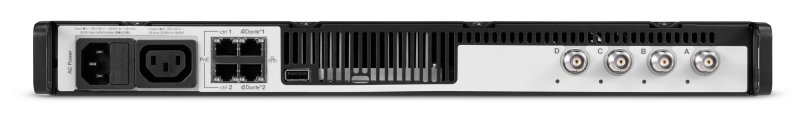

4 x Ethernet ports for network control and Dante/AES67 digital output options

4 x coaxial RF antenna input connectors support multiple frequency bands and provides greater coverage for complex setups

Networked control with Shure Wireless Workbench® for extended and enhanced RF monitoring and management

DC module version available to support redundant power

more
Please log in to see your price

Related products

Customers who bought this product also purchased

Model: TMP-CP-STAGE
Please log in to see your price
List Price: $349.00
Model: CR-8D-XSH-BE
Please log in to see your price
List Price: $539.00
Model: TMP-ANX4-4CL
Please log in to see your price

Product Properties

Description:

The ultimate high-tier, high channel count wireless receiver, Shure ANX4 receives up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels, allowing you the opportunity to purchase channels in single- and four-channel increments and activate the exact number of channels you need. Licenses can be activated in one ANX4 and later removed and activated in a different ANX4 as needs change. ANX4 channel licenses are perpetual licenses, not subscription-based licenses, and can be purchased through the same authorized suppliers ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account. All the exceptional features found in award-winning Axient Digital and ULX-D receivers that have made them standards on stages, in facilities, on tour, and on location throughout the world are available in the ANX4**. Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget, rack space, and rack weight in delivering large wireless audio channel counts in a single rack design. What’s more, this 1RU format also enables streamlined antenna configurations for large channel count environments. *ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and required for operation. **System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems at one time).
