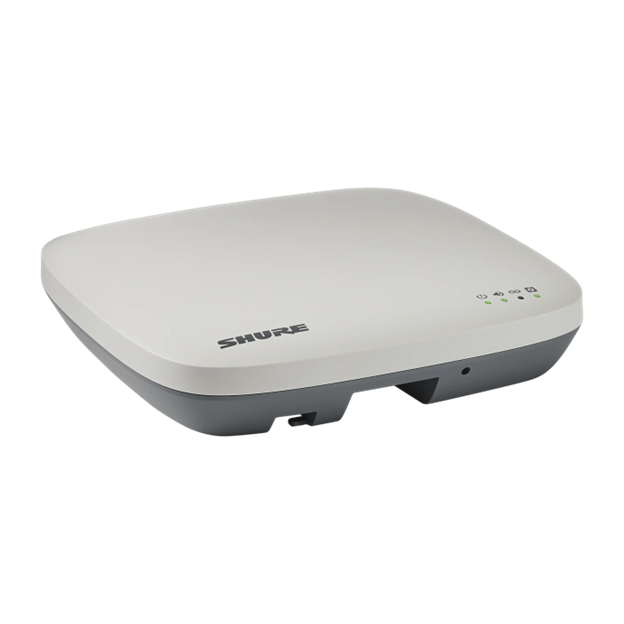

Shure MXWAPX8-Z10 Access Point 8 Ch

Analog, Dante, and USB-C audio connections.

Built-in IntelliMix DSP audio processing with automatic mixing, echo cancellation, noise reduction, automatic gain control, and EQ.

Automatic Frequency Management scans the spectrum, selects a clear channel, and automatically changes channels if interference is expected.

Power to the unit (via PoE) and Dante digital networked audio are both supplied over a single Ethernet cable to simplify installation.

Dual RJ45 connection enable 3 network operation modes - Switched, Split, or Redundant.

The supplied mounting plate and paintable cover allow discreet placement on the ceiling or wall in boardrooms and conference rooms where low visibility is preferred.

Two-way wireless transmission allows for remote control of audio and transmission of a secondary program audio to each transmitter.

Multiple units can be combined to support configurations of up to 40 compatible channels and 80 in Europe and select countries (double in HD mode).

Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for wired and wireless control and audio data.

Selectable RF output power to allow optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range.

Diagnostic LEDs offer easy visual reference to system activity and indicate power, wireless connection, and network audio status.

A CUI can be accessed on a PC connected to the same network enabling access to all device properties for optimization and user specific settings.
