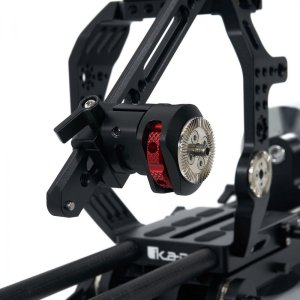

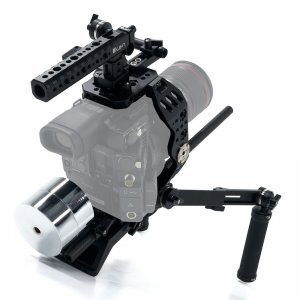

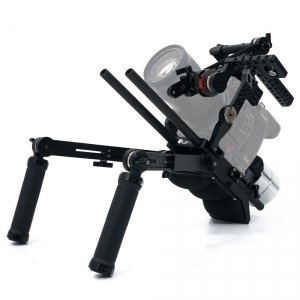

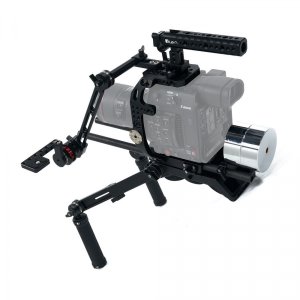

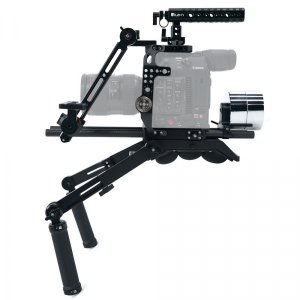

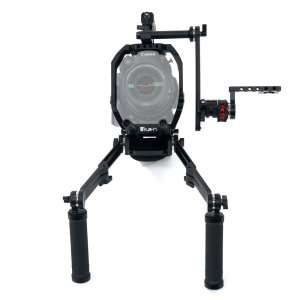

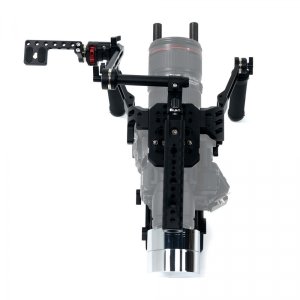

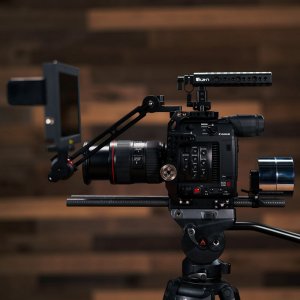

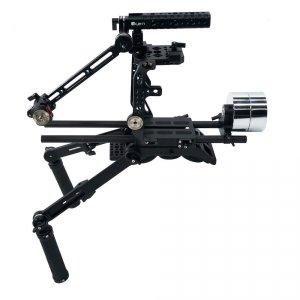

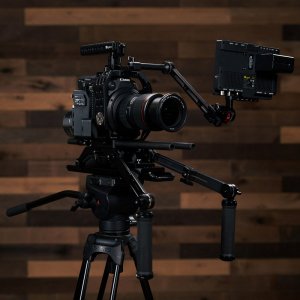

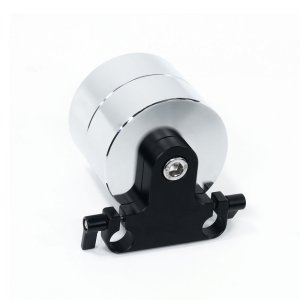

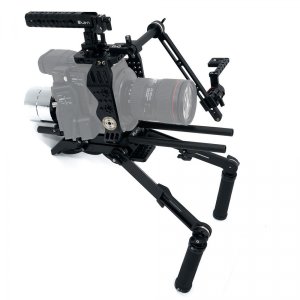

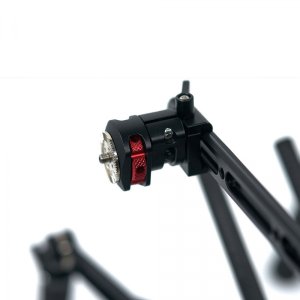

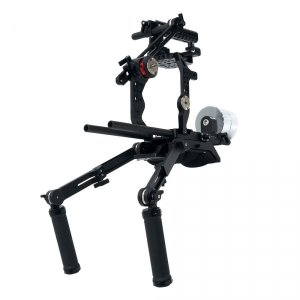

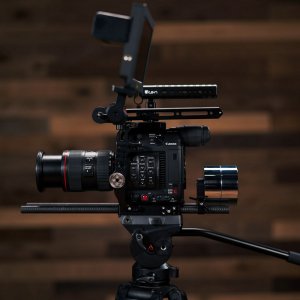

The Stratus C200 Shoulder Rig with Dual Grips provides a full shoulder-mounted solution for the Canon C200 & C200B. The Stratus Shoulder Rig comes with dual 360Deg rotating handgrips for secure shoulder-mounted operating. An EVF/Monitor Holder is also included. This allows for pro-style viewing with your Canon C200 camera. This rig includes a Manfrotto 501 style quick-release baseplate, C200 cage frame, Stratus top handle, extendable dogbones, counterweights, two carbon fiber 15mm rods, shoulder pad, rubber hand grips, 15mm rod adapter, monitor mount, and EVF mount. SHOULDER PAD WITH MANFROTTO 501 MOUNT The Stratus Shoulder Rig Kit comes with an ergonomic shoulder pad that can mount the included Manfrotto 501 Standard baseplate. The Manfrotto 501 Baseplate has two 15mm rod slots which enable you to mount accessories like a lens support, follow focus, and matte box. Once you have all of your rod accessories attached, you can then mount your setup on a Manfrotto 501 tripod without the shoulder pad and handgrips. Both sides of the shoulder pad contain ARRI rosettes for mounting the extendable dog bones and hand grips. The bottom of the shoulder pad contains an adapter plate that allows you to mount accessories like a VCT14 mount, an ARRI Standard dovetail mount, or a tripod plate. The shoulder pad alone can be used with a wide variety of cinema cameras like the Alexa Mini, EVA1, URSA Mini, Canon C-Series, Sony Cinealta, FX9 & FS7, Kinefinity, ZCam, Etc. STRATUS MONITOR AND EVF MOUNT The Stratus C200 Shoulder Rig Kit includes a fully rotatable monitor and EVF mount. The EVF mount can work with any side-mounted ARRI rosette EVF. The Monitor/EVF Mount can be attached by sliding it into the 15mm rod mount on the front of the top handle. It features an 8.5 inch standard NATO rail which can be used to move the monitor or EVF closer or further to the camera operator. Once the monitor is mounted and is at the preferred distance, it can be rotated to provide a comfortable viewing angle. The monitor mount can be connected to the same ARRI standard rosette as the EVF. The monitor mount fits monitors up to 7 inches. EXTENDABLE DOG BONES AND ROTATABLE HANDGRIPS The Stratus Shoulder Rig Kit features two rubber handgrips that can be individually rotated a full 360Deg. The dog bones can be extended or retracted to give you full flexibility of how you want to hold your camera rig. The handgrips can be detached from the dog bone which will allow you to connect the official Canon C200 handgrip. Furthermore, the dog bones can be extended to a maximum length of 8.5” and compressed to a minimum length of 5.25”. STRATUS C200 TOP PLATE The Ikan C200 Top Plate is custom-designed for your Canon C200, forming the base for accessorizing your camera without stressing its body. The C200 Shoulder Rig Kit comes included with a standard NATO rail which allows you to attach the Stratus Top Handle. The Stratus C200 Top Plate is also compatible with the official Canon top handle. It has a multitude of 1/4"-20 and 3/8"-16 screw holes as well as six different ARRI location pin inputs. Attaching a magic arm with ARRI location pins provides a perfectly secure mounting solution. The Stratus Shoulder Rig also comes with a 15mm rod adapter clamp that can be attached to the top plate with a 1/4-20 screw. STRATUS TOP HANDLE The Stratus Top Handle can be mounted to the standard NATO rail included with the kit. This provides a comfortable yet secure handle for your camera rig. It features a cold shoe mount for mounting shotgun mics, wireless receivers, and lights. A 15mm rod can be inserted inside of the top handle and secured with a 1/4-20 screw. The Stratus Top Handle features a 15mm clamp on the front of the handle that can be used to mount the included monitor/EVF holder. Machined aluminum construction provides a balance of strength and weight, and the unit is anodized for corrosion and wear resistance. SIDE PLATES The Stratus Shoulder Rig System includes two side plates that mount to both sides of the camera. Each plate contains 1/4-20 and 3/8 screw threads as well as ARRI location pin mounts for mounting accessories like monitor holders and magic arms. The plates feature standard ARRI rosettes which allow you to mount the official Canon C200 handgrip. 15MM ROD ADAPTER The Stratus Shoulder Rig System includes a 15mm Rod Adapter that can be attached anywhere on the cage frame. This will allow you to mount a 15mm rod anywhere on the cage and can be used for mounting a wireless follow focus motor from the top plate. The 15mm rod adapter can also work with the monitor/EVF holder by mounting it to the front of the top plate. INCLUDES GRIP RELOCATOR Extend the reach of your Canon C200 handgrip with this STRATUS Grip Relocator Extension Cable. The Grip relocator allows you to use your Canon C200 handgrip with the STRATUS C200 Shoulder Mount System. The cable utilizes a 3.5mm connection to connect the standard Canon handgrip to the camera. KEY FEATURES: SHOULDER PAD AND BASEPLATE Shoulder pad uses a Manfrotto 501 mount Baseplate has two 15mm rod slots Ergonomic gel polymer shoulder pad Includes two ARRI Standard rosettes on both sides of shoulder pad Seven 1/4"-20 threaded holes on the back of shoulder pad for accessories Eleven 1/4"-20 threaded holes on the front of shoulder pad for accessories Three 3/8 threaded holes on the front of shoulder pad for accessories Includes two 16" carbon fiber 15mm rods 1/4"-20 and 3/8"-16 screws supplied KEY FEATURES: DOG BONES AND HANDGRIPS Dog Bones can be extended to a maximum length of 8.5 inches Includes two rubber handgrips that support ARRI rosette-mounts Rubber handgrips can be rotated 360Deg Dogbone can accommodate the official Canon handgrip KEY FEATURES: TOP PLATE Can accommodate the official Canon top handle with LCD screen Top plate features groove indentions for mounting the Canon top handle Includes (35) 1/4-20 threads for mounting accessories Includes (4) 3/8 threads with ARRI location pins input for mounting accessories Includes (2) 1/4-20 threads with ARRI location pins for mounting accessories Includes two rubber handgrips that support ARRI rosette-mounts Rubber handgrips can be rotated 360Deg KEY FEATURES: TOP HANDLE Mounts to a standard NATO Rail Can accommodate a 15mm rod in the front and back Includes (24) 1/4-20 threads for mounting accessories Includes (12) 3/8 threads for mounting accessories Includes (4) 3/8 threads with ARRI location pins input for mounting accessories Includes (4) 1/4-20 threads with ARRI location pins for mounting accessories Made of Machined Aluminum KEY FEATURES: MONITOR/EVF MOUNT Can work with any EVF with an ARRI Rosette mount Works with monitors up to 7 inches Rotatable monitor/EVF mount for comfortable viewing angle |
