FBT

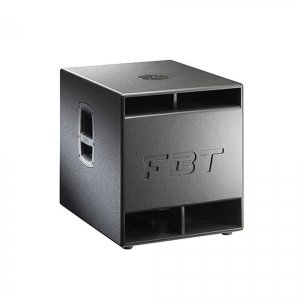

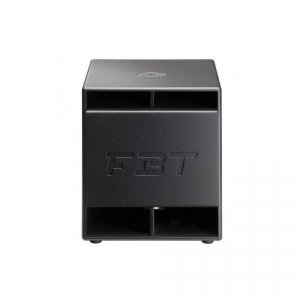

SUBLINE Series 15" Processed Active Subwoofer

Brand: FBT
Model: SUBLINE 115 SA
15mm (5/8”) Baltic birch plywood cabinet with scratch & scuff resistant paint finish
380 mm (15”) high excursion woofer with 75 mm (3”) voice coil, custom made for FBT
600W 131 / 135dB SPL Processed Active Subwoofer
600W RMS Class D power amplifier with switch mode power supply
Compact band-pass design subwoofer with high SPL and punch
Control Panel with Stereo combo XLR/Jack in/outs, Stereo XLR HP-filter outs, Volume, EQ Presets, Phase Reversal Switch 0°-180°, 3 status LED indicators
Digital Signal Processor with 4 presets, 2 equalization with 2 LPF Crossover Settings
Frequency response from 38Hz to 120Hz
M20 (20mm) top mount speaker stand socket, two aluminum carrying handles
Provides additional low frequency reinforcement when used along with 2 – way EvoMaxX speakers
Very Lightweight, only 31.5 Kg, (70 lb)
Please log in to see your price

Related products

Customers who bought this product also purchased

Product Properties

Description:


Evolving from the FBT EvoMaxX Series of loudspeakers, FBT Evo2MaxX speakers feature totally new Digital Sound Processing resulting in improved sound quality and SPL, especially in bass reproduction at high volume. The sound is more relaxing and natural and the four new DSP presets provide quick dynamic equalization and protection contours for any acoustically challenging venue. Other exciting features are high efficiency and excursion woofers, powerful Class D amplifiers with an extremely low noise floor.

Alongside these key performance improvements, FBT has been inspired to develop the Evo2MaxX Series by one very important goal – offering the customer more value for money. Evo2MaxX lightweight yet sturdy polypropylene cabinets feature a monitor taper designed to ensure that they perform with excellence no matter whether they are used at front of house for a main sound system, as stage floor monitors or within permanent installations.

Additional options are also available for extending low frequency response in the shape of the 15” subwoofer Evo2MaxX 9Sa or the SUBLine 12Sa, 15Sa and 18Sa, all of which boast birch plywood enclosures with 12”, 15” band-pass and 18” reflex designs respectively.

The SUBLINE series consists of 12Sa, 15Sa, 18Sa and 218Sa active subwoofers, and a passive
model 18S, built in birch 5/8” plywood with scratch & scuff resistant paint finish.
Aimed to extend the low frequency response to a wide range of FBT speaker systems.
Designed in 18” bass-reflex, 15” and 12” band-pass.
They have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.
IN/OUT stereo, it is possible to use only one subwoofer with Left and Right satellites.
Additional optional wheels, ergonomic integrated carrying handles and light cabinet allow an easy transport.
