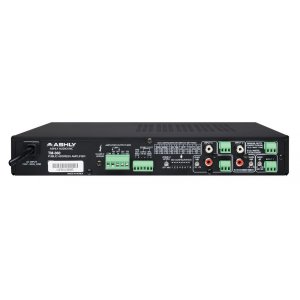

TM Series 60-Watt 3-Input Mixer/Amplifier

The Ashly TM-360 is a mixer and 60W mono power amplifier for applications that require background music and/or paging. Input 1 is a balanced microphone (phantom power available) or line input (Euroblock). Inputs 2 and 3 are balanced line level (Euroblock) or stereo summing (dual RCA). A front panel stereo ‘mini-jack’ is routed to Input 2 and will bypass the back panel input connectors. Each input has an independent gain control, signal presence LED, and front panel level control.

The TM-360 includes versatile priority-mute functions. Input 2 can be muted by audio on Input 1. Input 3 can be muted by audio on Input 1or 2. The front panel signal presence LEDs on each input function as priority ‘mute’ indicators. A manual mute function can be engaged usinga contact closure.

A ‘Zone 2’ output (1W-8 ohms and/or line level) with level control can have selected inputs assigned.

Bass and Treble controls are on the main output. A 400Hz low-cut filter can be engaged on the main output when needed for paging horn applications. The main output (Euroblock) is rated at 60W into 4 ohms (direct) and transformer isolated at 25V and 70V.

The TM-360 has a power saving mode that will engage after 25 minutes of audio inactivity, or can be manually engaged using a contact closure. The front panel ‘power’ LED turns from blue (normal) to red when the unit is saving power.

An optional rack-mounted kit is available.
