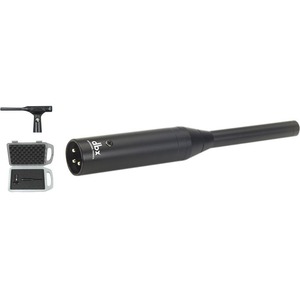

TM1 Measurement Microphone Kit

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use and affordability.

Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 is designed to capture acoustic measurements for room analysis software programs, real time analyzers and other sound control devices. With a flat frequency range of 20 Hz – 25 kHz, the TM1 is an excellent tool for sound engineers, sound companies and recording enthusiasts.

The TM1 is designed, machined, assembled and tested by Audix in the USA.

TM1 PLUS - includes calibration data file and sensitivity, threaded acoustic windscreen, and CA4231 machined calibration adapter

Type: Pre-polarized Condenser
Polar Pattern: Omni-directional
Frequency Response: 20Hz - 25kHz +/-2 dB
Impedance: 200 Ohms
Sensitivity: 6 mV/Pa @1k
