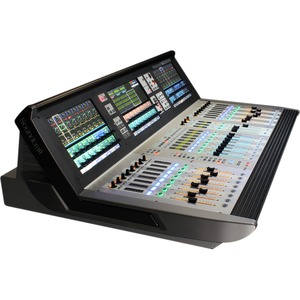

Soundcraft 5056046

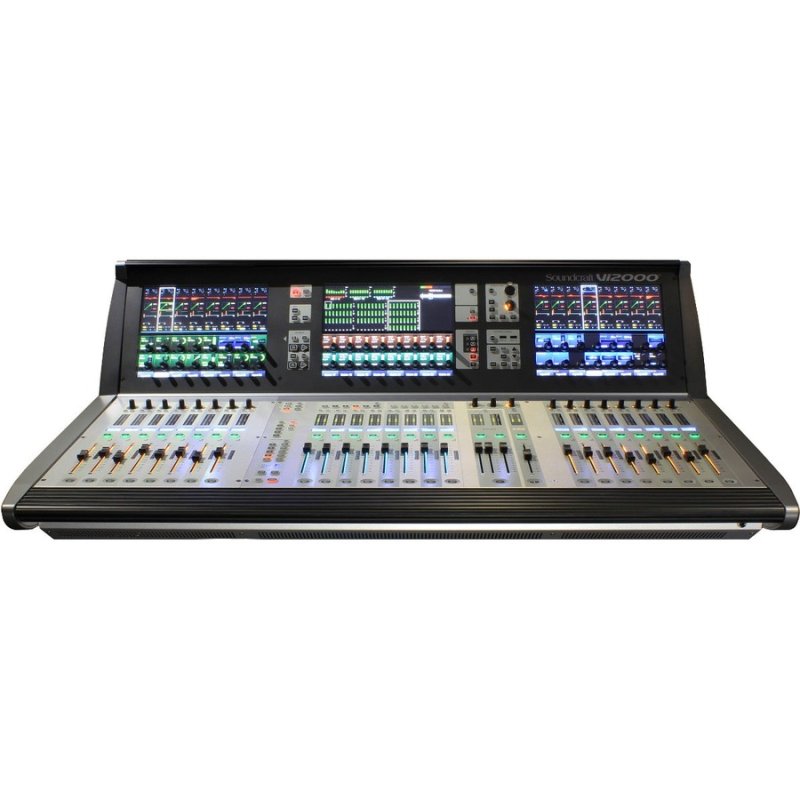

Control Surface

Input Faders: 16

Output Faders: 8 +3 (LRC masters) +1 (Monitor A/B)

Total Faders: 28

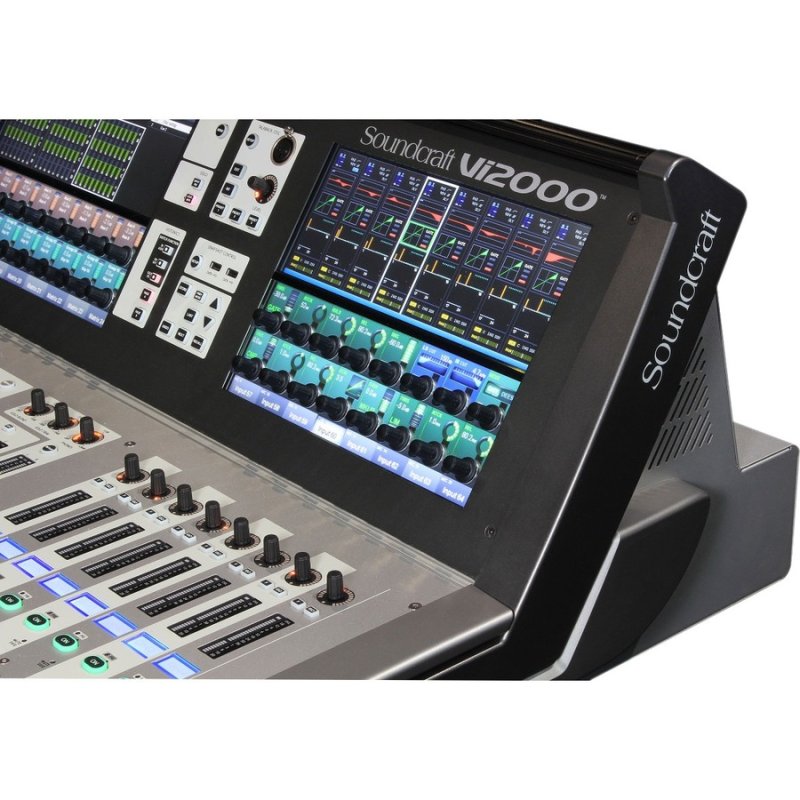

3D Vistonics screens: 3 (2 input, 1 master)

Fader bay operation

4x Fixed Input layers A/B/C/D giving 64 inputs on 16 fdrs; Input channels can be assigned to Master bay for 24 input fdrs; 5x User layers 1-5; 1x Busses 1-16 Layer plus screen assign 17-24, for 24 mono/stereo busses; VCA/A/B/C/D/E output/input fader pages, (A-E user definable)

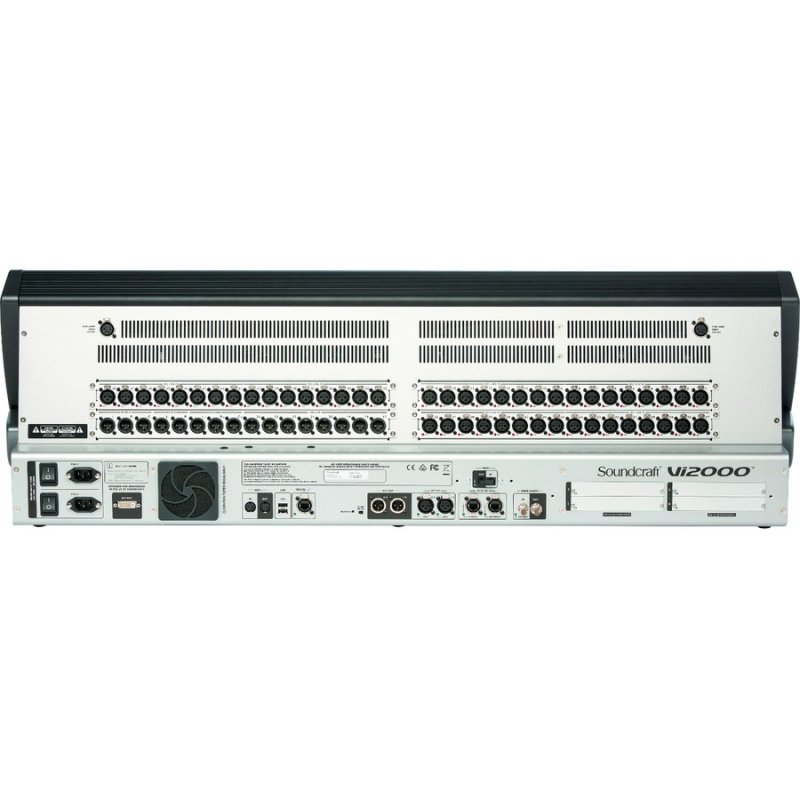

Local I/O Physical connectors

Mic/Line Inputs: 48, 32 or 16 configurable (max 3x 16ch out cards of 4 total) (Last 5 outs default to local monitors but can be repatched)

AES/EBU In: 2 (=4ch) plus optional 16ch via Vista1 card (remove 2 mic or line out cards to fit).
