QSC

TouchMix Series 16 Ch Compact Digital Mixer

Brand: QSC
Model: TOUCHMIX-16
UPC: 684284061546
Products Variants:
1/3 octave graphic equalization, limiters, delay and notch filters on main and aux. outputs.
4 professional quality stereo DSP effects plus a pitch corrector.
4-band full parametric EQ, variable high-pass and low-pass filters on all input channels.
8 DCA and 8 Mute groups.
Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair.
Gate and compressor on all input channels.
Inputs: 16 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track

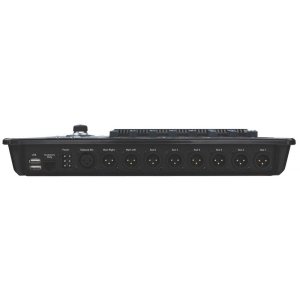

Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)
Remote control via mobile devices. Wi-Fi interface included.
TRS Aux outs drive wired In Ear Monitors (IEM) directly.
Wizards, info and preset libraries assist the user with channel setup, effects selection and more.
Please log in to see your price

Related products

Model: TOUCHMIX-8
Please log in to see your price
Model: NVMA1240-0-US
Please log in to see your price
Model: AH-M-SQ-SDANTE64-A
Please log in to see your price
Model: NVMA1120-0-US
Please log in to see your price

Customers who bought this product also purchased

Model: MS7701B
Please log in to see your price
Model: DS7200B
Please log in to see your price
Model: XCG-4
Please log in to see your price
Model: SM7211B
Please log in to see your price
Model: KS7190
Please log in to see your price
Model: MS7201B
Please log in to see your price
Model: FS7850B
Please log in to see your price

Product Properties

  • Bullet points
  • 1/3 octave graphic equalization, limiters, delay and notch filters on main and aux. outputs.
    4 professional quality stereo DSP effects plus a pitch corrector.
    4-band full parametric EQ, variable high-pass and low-pass filters on all input channels.
    8 DCA and 8 Mute groups.
    Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
    Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair.
    Gate and compressor on all input channels.
    Inputs: 16 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track
    Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)
    Remote control via mobile devices. Wi-Fi interface included.
    TRS Aux outs drive wired In Ear Monitors (IEM) directly.
    Wizards, info and preset libraries assist the user with channel setup, effects selection and more.
  • Product Type
  • Digital Mixer

Description:

QSC TouchMix compact digital mixers are designed for musicians, production professionals and live performance venues that need the power and capability of a large “concert” mixing console in a compact, affordable and easy to use form. TouchMix-8 and TouchMix-16 mixers have the functionality to satisfy demanding professionals combined with a range of features and functions that help the less experienced user achieve quality results.

Professional Results Made Easy

Simple Mode makes getting great results easy and fast (similar to the “Auto” function on a DSLR camera)
Advanced Mode gives pro users total control over all mixer parameters
Wizards and preset libraries created specifically for live sound reinforcement assist the user with channel setup, effects selection and more
Built-in color touchscreen combined with hardware controls for fast and intuitive operation

“Big Mixer” Features and Specifications

4-band full parametric EQ and variable high-pass filter on all input channels.
Gate and compressor on all input channels
Four premium stereo DSP’s with a full selection of professional digital effects
1/3 octave graphic EQ, notch filters, limiters and delay on main and aux. outputs, DCA’s and mute groups High Quality microphone preamps Channel-selectable phantom power
Multiple monitor mixes including ability to drive in-ears directly
Multitrack direct to disk recording/playback via external USB hard drive (not included.) No computer required.

TouchMix delivers all the processing power and features that a professional live sound engineer could want.

Compact and Complete

Approximately the size and weight of a small laptop computer
Operation via internal color touch-screen and rotary dial, mobile device or both simultaneously
USB Wi-Fi adapter included. No additional network hardware required for remote control
Includes padded carrying case for protection and easy transport

,
New to Version 2.0:

Support for password protected, multi-level security access
Expanded Wi-Fi options (including wired connection to an infrastructure router)
Programability of User Buttons
More options for auxiliary mix pick-off points
Expanded channel presets
Updated iOS app
Personal monitor mix application for both iPhone and iPod Touch
Operator may limit or allow access on a per-device basis
iPhone control of the record/playback transport controls and programmable user buttons

Android support (coming soon)

TouchMix v2.0 software standard on new TouchMix-16 and TouchMix-8 models and available as a free download at QSC.com for existing TouchMix owners.
