Electro Voice

Tour X Series 18" Subwoofer

Model: TX1181
UPC: 800549769242
100 dB sensitivity, 132 dB maximum SPL
500 W continuous, 2000 W peak power handling
EVS-18S 18” (457 mm) LF transducer
Integrated low pass filter with 6 dB / octave slope
Mounting points to attach optional TX-W1 wheel kit
Pole mount to elevate a two-way loudspeaker
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Model: TX2181
Please log in to see your price
Model: KS118
Please log in to see your price
Model: ELX200-12SP-US
Please log in to see your price
Model: KS112
Please log in to see your price

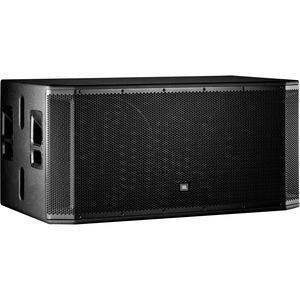

Model: SRX828SP
Please log in to see your price

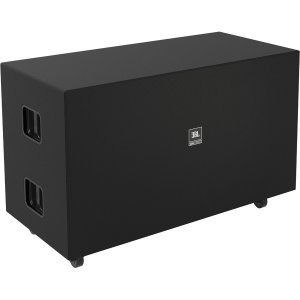

Model: SRX928S
Please log in to see your price

Customers who bought this product also purchased

Model: EBK-3
Please log in to see your price
Model: CB5-B
Please log in to see your price

Product Properties

  • Active/Passive
  • 303
  • Coverage
  • Omni
  • Frequency Range
  • 45Hz-700Hz (-10dB)
  • LF Driver Size
  • 18"
  • Max Dimensions
  • 30.3" x 20" x 23.3"
  • Max SPL
  • 132dB
  • Nominal Impedance
  • Product Type
  • PA Loudspeaker
  • Sensitivity
  • 100dB
  • System Power
  • 500W Cont.

Description:

Compact and portable performance. Provides the low frequency energy needed to keep up with Tour X top boxes. Integrated low-pass input filter for single amp drive.

Color: Black
Input Connections: Parallel Neutrik® NL4
Speaker Type: Subs
Frequency Response (-3 dB): 50 - 160 Hz
Frequency Response (-10 dB): 45 - 700 Hz
Internal Crossover: Yes
Recommended High-Pass Frequency: 30 Hz
Sensitivity 1 W/1 m: 100 dB
Max. SPL/1m (calc): 132 dB
System Power Handling: 500 Watts
LF Transducer: EVS18S
Nominal Impedance (Passive): 8 ?
Minimum Impedance: 7.5 ?
Enclosure Material: Plywood and MDF with EVCOAT
Flying: No
Height: 769 mm (30.28")
Width: 508 mm (20")
Depth: 591 mm (23.27")
Weight Net: 33.8 kg (74.52 lbs)
