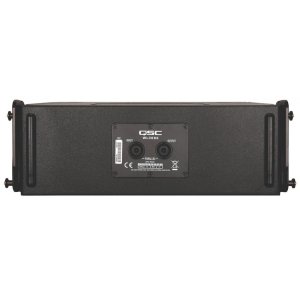

WideLine-8 Series Line Array Element

QSC's WideLine-8 packs full size line array performance into an ultra compact package measuring less than 20" (508 mm) wide and 9" (229 mm) high. The WideLine-8 applies to audio the classic hot rod, high performance formula – putting the most horsepower available into the smallest chassis possible.

Each tri-amplified WideLine-8 element uses a pair of high-power, neodymium magnet, 8" low-frequency drivers. Both cover low frequencies while only one extends into the midrange, thus maintaining horizontal dispersion control at crossover. High frequencies are handled by a premium, 3" diaphragm, neodymium compression driver mounted to QSC's patented, 140° multiple aperture diffraction waveguide. WideLine signature wide coverage delivers a broader stereo image, reduces the need for supplemental fill speakers and allows more placement options.

The waveguide exit extends nearly to the top and bottom of the enclosure to create a continuous acoustical source with minimal discontinuities between adjacent elements resulting in greatly reduced destructive interaction.

Premium materials are used throughout the system. The enclosure is constructed of Baltic birch plywood and coated in an environmentally friendly, waterborne polymer finish that is field repairable. To keep the weight to a minimum and prevent rust, suspension fittings are made of aluminum.

An elegantly simple 4-point suspension system combined with lightweight, compact size and excellent handling ergonomics mean that a one person crew can easily deploy an array. A single AF3082-L array frame suspends up to twelve line array elements or up to twelve line array elements plus four subwoofers. The WideLine-8 system is equally at home in the air or ground stacked.

Special attention is given to ground-stacked applications. The WideLine-8 sub suspension system includes a unique provision that allows the lowest line array element stacked over a sub to be tilted up or down by as much as 10°, offering better coverage of listeners near the stage. WideLine-8 subs may be used as a base for stacking up to six WideLine-8 elements.

High Frequency Transducer: 1.4" exit, 3" titanium diaphragm, neodymium magnet assembly

Low Frequency Transducer: Dual, 8" woofer, 2.5" voice coil

Nominal Impedance
HF: 16 ohms
MF: 16 ohms
LF: 16 ohms

Continuous Power Capacity
HF: 85 W
MF: 250 W
LF: 250 W

Nominal Coverage: Horizontal: 140°

Connectors: 2 x Neutrik Speakon® NL8 in parallel
