Electro Voice

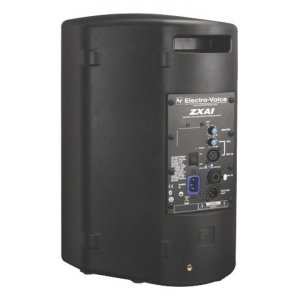

ZX Series Compact 8" Powered Loudspeaker

Model: ZXA1-90B-120V
UPC: 800549897518
Products Variants:
123 dB maximum SPL
90° x 50° coverage pattern
Biamplified design with transducer protection
Built-in pole mount
DH2005 1” exit true compression driver
EV8L 8” high-output LF transducer
Integral monitor angle on enclosure
Integrated 800 watt power amplifier
Lightweight (< 20 lbs) with integral handle for easy carrying
Line and microphone inputs
Rotatable horn design
Selectable high-pass filter for use with subwoofers
Please log in to see your price

Related products

Model: ZX4
Please log in to see your price
Model: ZX1-90
Please log in to see your price
Model: ZX1-SUB
Please log in to see your price
Model: ZXA1-SUB-120V
Please log in to see your price

Customers who bought this product also purchased

Model: SS7322B
Please log in to see your price
Model: HSX-003
Please log in to see your price
Model: HXS-003
Please log in to see your price
Model: CN-1800S
Please log in to see your price
Model: RS-2
Please log in to see your price
Model: CDD10W
Please log in to see your price
Model: MG06
Please log in to see your price
Model: ZXA1-SUB-120V
Please log in to see your price

Product Properties

  • Active/Passive
  • 302
  • Coverage
  • 90° x 50°
  • Frequency Range
  • 48Hz-20kHz (-10dB)
  • HF Driver Size
  • 1.25"
  • LF Driver Size
  • 8"
  • Max Dimensions
  • 17.98" x 11.12" x 10.38"
  • Max SPL
  • 123dB
  • Product Type
  • PA Loudspeaker
  • System Power
  • 800W

Description:

Electro-Voice engineers have raised the bar for portable sound once again, adding to the award-winning ZX loudspeaker family with the new ZXA1 – the self-powered version of the best-selling ZX1 compact two-way loudspeaker. ZXA1 is powered by an 800 watt amplifier module derived from EV’s world-tour-class Tour Grade series – amplifiers with audio quality and reliability proven at the very highest levels.

Input Connections: XLR and TRS Combo; XLR with Independent Gain
Power Requirement: 120V: 95V - 132V, 50 - 60 Hz, 0.6A; 230V:190V - 264V, 50 - 60 Hz, 0.4A
Frequency Response (-3 dB): 60 Hz - 20 kHz Hz Full Range Mode
Frequency Response (-10 dB): 48 Hz - 20 kHz Hz Full Range Mode
Recommended High-Pass Frequency: 100 Hz User Selectable
Max. SPL/1m (calc): 123 dB
LF Transducer: EV8L, 203mm (8 in) Driver
HF Transducer: DH2005, 25mm (1 in) Exit Compression Driver
Crossover Frequency: 1800 Hz
Enclosure Material: High Impact Polystyrene
Grill: Polyester Powder Coated, 18GA Galvanized Steel
Height: 457 mm (17.99")
Width: 282 mm (11.1")
Depth: 264 mm (10.39")
Weight Net: 8.62 kg (19 lbs)
Shipping Weight: 10.3 kg (22.7 lbs)
