Coax Compression Driver 12" 2-Way (70.7V)

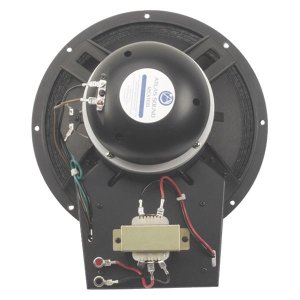

Model 12CXT60 is a 250 watt loudspeaker that combines a 12" diameter, low frequency transducer and a 1" exit, true compression driver. With the addition of a factory installed, high efficiency, 60W, 70.7/100V step down line transformer.

The unit features a curvilinear, treated paper cone for lower harmonic distortion and a built-in crossover network for proper frequency transition between the two reproducers.

Model 12CXT60 operates within a frequency response range of 45 Hz -18 kHz (±10dB) with a sensitivity of 99dB and a dispersion angle of 90° (-6dB/2kHz octave band).

Depth: 8" (20.32 cm)
Diameter: 12 7/8" (32.7025 cm)
Shipping Weight: 26.00 lbs (11.79 kgs)
Frequency Response: 33 Hz to 21 kHz (±2dB)
Power Taps: 7.5, 15, 30, 60
Speaker Type: Compression Driver Coaxial
Dispersion: 90°
Sensitivity: 99dB (at 1W / 1M)
