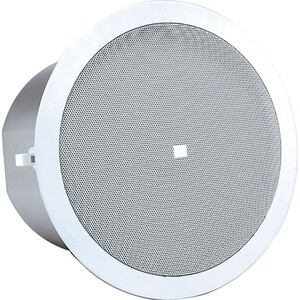

Ceiling Loudspeaker Assembly for Life Safety Applications

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

Frequency Range : 80 Hz - 20 kHz

Power Capacity : 150 W Continuous
Program Power
75 W Continuous
Pink Noise

Transformer Taps : 070V: 60W, 30W, 15W & 7.5W
100V: 60W, 30W, & 15W

Nominal Coverage Angle : 110° conical coverage

Directivity Index (DI) : 4.6 averaged 500 Hz to 4 kHz

Rated Maximum SPL : 107 dB @ 1 m (3.3 ft)

Low-Frequency : 165 mm (6.5 in) Polypropylene-coated,
1" coil on aluminum former

High-Frequency : 19 mm (¾ in) Titanium coated polyester

Termination : Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)

Outside Dimensions (H x Dia) : 210 x 252 mm (8.3 x 9.9 in)
190 mm (7.5 in) front of ceiling tile
to back of backcan

Net Weight (ea) : 4.2 kg (10 lb)

Shipping Weight (pair) : 9.7 kg (21 lb)
