JBL

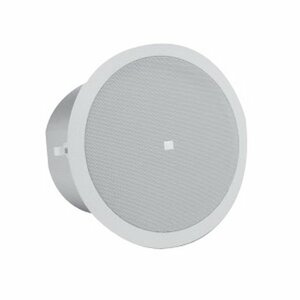

6.5" Ceiling Loudspeaker Assembley

Brand: JBL
Model: CONTROL 26C
UPC: 050036903967
Products Variants:

High power, wide frequency response and low distortion for high sound level capability

Screw locking barrier strip termination

Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

more
Please log in to see your price
Specification Sheet Specification Sheet
Specification Sheet (Download)

Related products

Customers who bought this product also purchased

JBL Control 25-1
JBL Control 25-1
Model: CONTROL 25-1
Brand:JBL
Please log in to see your price
List Price: $249.39
View
XSW 2-835
XSW 2-835
Model: XSW 2-835-A
Brand:Sennheiser
Please log in to see your price
List Price: $529.00
View
2x450W Power Amplifier
2x450W Power Amplifier
Model: XLI1500
Brand:Crown
Please log in to see your price
List Price: $950.43
View
2x350W Power Amplifier
2x350W Power Amplifier
Model: XLS1002
Brand:Crown
Please log in to see your price
List Price: $730.76
View
JBL CONTROL 28-1L
JBL CONTROL 28-1L
Model: CONTROL 28-1L
Brand:JBL
Please log in to see your price
List Price: $377.30
View
ZonePRO Program Selector Zone Controller
ZonePRO Program Selector Zone Controller
Model: ZC-3
Brand:DBX
Please log in to see your price
List Price: $119.00
View
ROLLS RM169
ROLLS RM169
Model: RM169
Brand:Rolls Corporation
Please log in to see your price
List Price: $279.00
View
ZonePRO Up/Down Volume w/Source SelectUp/Down Volume w/Source Select
ZonePRO Up/Down Volume w/Source SelectUp/Down Volume w/Source Select
Model: ZC-8
Brand:DBX
Please log in to see your price
List Price: $119.00
View

Product Properties

  • Coverage
  • 110°
  • Frequency Range
  • 75 Hz - 20 kHz
  • HF Driver Size
  • .75"
  • LF Driver Size
  • 6.5"
  • Max Dimensions
  • 8.3 in x 9.9 in
  • Max SPL
  • 107 dB SPL @ 1m
  • Nominal Impedance
  • 16Ω
  • Product Type
  • Ceiling Speaker
  • Sensitivity
  • 89 dB, 1m/1 W
  • System Power
  • 75 W Continuous

Description:

The 26C ceiling speaker is designed to provide maximum volume over a defined area. It features a coaxially mounted 6.5" woofer and .75" titanium-coated tweeter.

Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.

High power, wide frequency response and low distortion for high sound level capability.

JBL�s exclusive SonicGuard�overload protection allows higher operational levels and improved system reliability.

Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Priced Each/ Sold In Pairs
