JBL

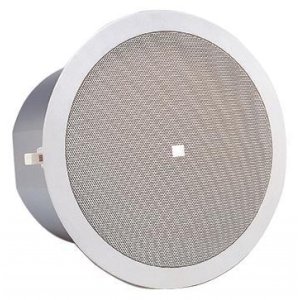

6.5" Ceiling Loudspeaker Transducer Assembly

Brand: JBL
Model: CONTROL 26-DT
UPC: 050036905084
Products Variants:
60 W transformer for 70 V or 100 V distributed speaker lines
Advanced crossover network provides natural sound and even coverage throughout listening area
Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter
Comes complete with transducer, network and transformer
Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
Please log in to see your price
Specification Sheet Specification Sheet
Specification Sheet (Download)

Related products

Customers who bought this product also purchased

Product Properties

  • Bullet points
  • 60 W transformer for 70 V or 100 V distributed speaker lines
    Advanced crossover network provides natural sound and even coverage throughout listening area
    Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter
    Comes complete with transducer, network and transformer
    Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
  • Product Type
  • Ceiling Speaker

Description:

The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.

Frequency Range : 70 Hz - 20 kHz

Transformer Taps : 70 V: 60 W, 30 W, 15 W, & 7.5 W 100 V: 60 W, 30 W, & 15 W

Frequency Response : 95 Hz – 18 kHz
( ± 3 dB)

Nominal Coverage Angle : 90°

Crossover Frequency : 3.5 kHz

Directivity Index (DI) : 7.6 dB

Directivity Factor (Q) : 8.8 dB

Minimum Impedance : 80 ohms @ 247 Hz (60 W tap), 159 ohms, (30 W tap), 318 ohms, (15 W tap), 635 ohms, (7.5 W tap)

Rated Maximum SPL : 106 dB SPL @ 1m (3.3 ft)

Low Frequency : 165 mm (6.5 in) polypropylene-coated, 1 in voice coil on aluminum former.
Adapter flange to fit standard 6.5 in mounting.

High Frequency : 19 mm (.75 in) titanium coated polyester

Mounting Points : 4 screw holes at 194 mm (7.625 in) diameter on center

Terminations : Screw locking barrier strip

Safety Agency Rating : In accordance with IEC60849 / EN60849.

Dimensions (H x Dia.) : 120 mm x 200 mm (4.72 in x 7.87 in)

Net Weight (ea) : 1.9 kg (4.2 lb)

Shipping Weight (pair) : 4 kg (8.8 lb)
