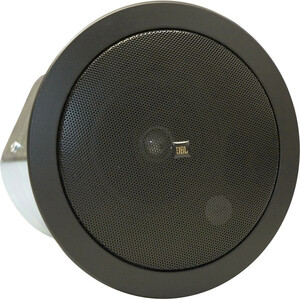

Control Contractor 4" Coaxial Ceiling Speaker with Transformer (Black)

The Control 24CT-BK is a compact ceiling speaker providing premium performance in background, foreground and music-pluspaging sound systems. The Control 24CT-BK is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT-BK ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.

Freq. Range (-10 dB) : 80 Hz - 20 kHz

Power Capacity : 80 Watts Continuous
Program Power
40 Watts Continuous
Pink Noise

Transformer Taps : 70 V: 30W, 15W, 7.5W & 3.7W taps
100 V: 30W, 15W, & 7.5W taps

Nominal Sensitivity : 86 dB SPL @ 1 m (3.3 ft)

Nominal Coverage Angle : 130° conical coverage

Directivity Factor (Q) : 2.4 averaged 500 Hz to 4 kHz

Directivity Index (DI) : 3.8 averaged 500 Hz to 4 kHz

Enclosure : Backcan: Formed steel
Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0

Termination : Removable locking connector with screw-down terminals.
2 input terminals and 2 loop-thru output terminals.
Max. wire size 12 AWG (2.5 mm)

Outside Dimensions (H x Dia) : 200 x 195 mm (7.9 x 7.7 in)
184 mm (7.2 in) front of ceiling tile to back of backcan

Cutout Size : 168 mm (6.6 in)

Net Weight (ea) : 3.5 kg (8 lb)

Shipping Weight (pair) : 8.0 kg (18 lb)

Included Accessories : C-shaped support backing plate
2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
Cutout template
Paint shield
Removable locking wiring connector
