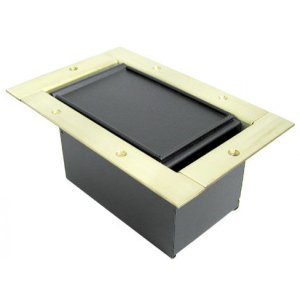

Half Pocket/Standard Brass Lid - Brass Bezel

Half Pocket/Standard Brass Lid - Brass Bezel

Name: Half Pocket/Standard Brass Lid - Brass Bezel
SKU: 223SLBR

Brand: Ace Backstage

Model: 223SLBR

Products Variants:

CABLE WAY SLOTS: Generous 3/8" x 4" Cable Way Slots permit easy cable exit from pocket(s), even for large gauge cables. A Cable Way Slot Closure channel closes the slot when not in use.

DECORATOR FINISHES: Scratch/wear resistant finish, oven cured powder coat electro-static applied inside and outside entire Full Stage Pocket. Decorator neutral Antique Copper Vein and Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange with a brushed finish is also available by special order.

DURABLE CONSTRUCTION: Welded steel construction of Half Stage Pocket Lid, Mounting Flange, and Pocket Body resist bending under even the most severe stage loads. The Lid and Mounting Flange is made from 1/8" (nominally 11 ga. (.120") CRS) thick steel while the Pocket Body is made from 16 ga. (.062") thick CRS steel.

EASY INSTALLATION: Easy installation into 4.75" x 8.5" rectangle cutout in stage floor. Open easy access from the top or back of the stage pocket allows simple connector/panel terminations.

MEDIUM CAPACITY: The Half Stage Pocket accomodates #PNL-100 Series Panels, #PSW-100 Series Panels, and #PE Series Panels in an interchangeable multi-panel system making for easy custom configurations. One (1) optional #PNL-100 Series Panels will mount up to 6 "CONNECTRIX", Neutirk®, and/or Switchcraft® type connectors. One (1) optional #PSW-100 Series Panels will mount up to 6 Switchcraft® type connectors.

RUBBER LID STOPS: Rubber lid stops set into recessed mount cradle the lid to prevent lid rattle.

SPRING LOADED HINGE PINS: Removable spring loaded hinge pins permit easy exchange of lids for Carpet Lid (CL), Locking Lid (LL), Standard Lid (SL) and custom application lids.
