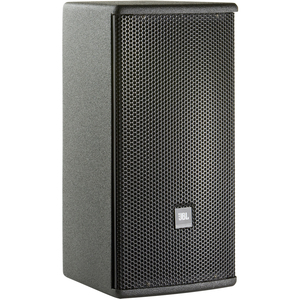

Compact 2-way Loudspeaker with 8” Driver (120° x 60° Coverage)

An extension of the industry leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. The AC18/26 is a high output, 2-way loudspeaker systems combining flexibility with high fidelity.

Frequency Range
(-10 dB) : 52 Hz - 20 kHz

Frequency Response
(±3 dB) : 63 Hz – 19 kHz

Power Rating : 250W Cont. Pink Noise
500W Program
1000W Peak

Impedance : 8 ohms

Coverage Pattern : 120° x 60°

Dimensions
(H X W X D) : 469.9 x 237.5 x 254.0 mm
(18.5 x 9.4 x 10.0 in)

Weight : 12.8 kg
(28.2 lb)
