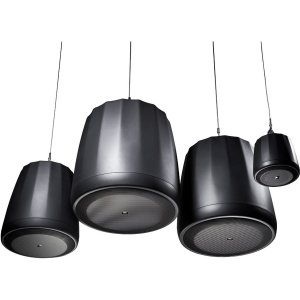

Narrow 75° Coverage High Ceiling Pendant Speaker

Control 67HC's well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics, such as convention centers, transit centers, exhibit venues and hotel atrium areas.

Frequency Response (-10 dB) : 75 Hz - 17 kHz

Frequency Range (±3 dB) : 110 Hz - 16 kHz

Power Capacity : 75 Watts Continuous Pink Noise Power
(with 300 Watts peaks)
150 Watts Continuous Program Power

Nominal Sensitivity : 93 dB

Nominal Coverage Angle : 75° (+15°/-20°)

Rated Maximum SPL @ 1m : 112 dB continuous pink noise, 118 dB peak

Rated Impedance : 8 ohms

Transformer Taps : 70V: 60W, 30W, 15W & 7.5W
100V: 60W, 30W, 15W

LF Driver : 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former

HF Driver : 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former

Enclosure Material : High impact polystyrene

Environmental : Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per
IEC 529 - splashproof rating.

Termination : Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.

Suspension : Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Grippleâ?¢ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).

Safety Agency Ratings : Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Dimensions : 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.

Net Weight (ea) : 5.9 kg (13 lbs)

Included Accessories : Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
