JBL

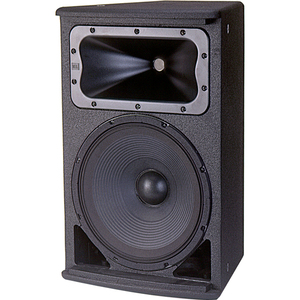

Compact 2-Way Loudspeaker with 12" Driver (90° x 50° Coverage)

Brand: JBL
Model: AC2212/95
UPC: 691991010729
Products Variants:
90° x 50° Coverage
Bi-Amp / Passive Switchable
For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed entertainment venues
Optional planar array frame kit PAF-2K 3-wide array with ASB6118 subwoofer center
Optional U-Bracket Model MTU-4
PT™ Progressive Transition™ Waveguide for good pattern control with low distortion
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Model: AC566-WH
Please log in to see your price
Model: AC895-WH
Please log in to see your price
Model: AC-SM31-JBOX
Please log in to see your price
Model: AC299-WH
Please log in to see your price
Model: AC195-WH
Please log in to see your price
Model: C1PRO
Please log in to see your price

Customers who bought this product also purchased

Product Properties

  • Active/Passive
  • 303
  • Coverage
  • 90°H x 50°V
  • Frequency Range
  • 50Hz-19kHz (-10dB)
  • HF Driver Size
  • 1.75"
  • LF Driver Size
  • 12"
  • Max Dimensions
  • 21.6" x 14" x 13.9"
  • Max SPL
  • 126dB
  • Nominal Impedance
  • 8Ω Passive, 8ΩLF, 8ΩHF
  • Product Type
  • PA Loudspeaker
  • Sensitivity
  • 95dB
  • System Power
  • 250W 100hrs IEC

Description:

The AE Series is a complete line of permanent installation loudspeakers, containing the performance and features that meet the needs of contractors and consultants alike. AC2212/95 is a compact 2-way full range loudspeaker system comprised of one 300 mm (12 in) low frequency driver and one 38 mm (1.5 in) exit/ 44 mm (1.75 in) voice-coil compression driver.

Frequency Range : 50 Hz - 19 kHz (-10 dB)

Frequency Response : 55 Hz - 17 kHz ( ± 3 dB)

Coverage Pattern : 90°x 50°

Directivity Factor (Q) : 8.9

Directivity Index (DI) : 9.5 dB

Crossover Modes : Bi-amp/Passive switchable

Passive Crossover Slopes : 3rd order (18 dB/oct) Butterworth HP & LP, 1700 Hz

Transducer Power Rating (AES) : LF: 300 W (1100 W peak), 2 hrs
250 W (1000 W peak), 100 hrs
HF: 30 W (120 W peak), 2hrs

Long-Term System Power Rating (IEC) : Passive mode: 250 W (1000 W peak), 100 hrs

Maximum SPL : Bi-amp mode:
LF: 120 dB-SPL cont avg
(126 dB peak)
HF: 127 dB-SPL cont avg
(133 dB peak)
Passive mode:
120 dB-SPL cont avg
(126 dB peak)

System Sensitivity : Passive mode: 95 dB SPL (1W @ 1m)
