JBL

Compact 2-Way Loudspeaker with 12" Driver (100° x 100°, White)

Brand: JBL
Model: AC2212/00-WH
UPC: 691991010651
Products Variants:
Bi-Amp / Passive Switchable
For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed entertainment venues
Optional planar array frame kit PAF-2K 3-wide array with ASB6118 subwoofer center
Optional U-Bracket Model MTU-4
PT™ Progressive Transition™ Waveguide for good pattern control with low distortion
Please log in to see your price

Related products

Model: AC566
Please log in to see your price

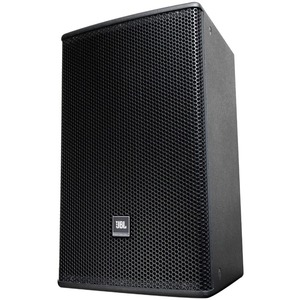

Model: AC299
Please log in to see your price
Model: ACTION-508A
Please log in to see your price
Model: AC895
Please log in to see your price

Customers who bought this product also purchased

Product Properties

  • Product Type
  • PA Loudspeaker

Description:

The AE Series is a complete line of permanent installation loudspeakers, containing the performance and features that meet the needs of contractors and consultants alike. AC2212/00 is a compact 2-way full range loudspeaker system comprised of one 300 mm (12 in) low frequency driver and one 38 mm (1.5 in) exit/ 44 mm (1.75 in) voice-coil compression driver.

Frequency Range : 50 Hz - 19 kHz (-10 dB)

Frequency Response : 55 Hz - 17 kHz ( ± 3 dB)

Coverage Pattern : 100°x 100°

Crossover Modes : Bi-amp/Passive switchable

Passive Crossover Slopes : 3rd order (18 dB/oct) Butterworth HP & LP, 1700 Hz

Transducer Power Rating (AES) : LF: 300 W (1100 W peak), 2 hrs
250 W (1000 W peak), 100 hrs
HF: 30 W (120 W peak), 2hrs

Long-Term System Power Rating (IEC) : Passive mode: 250 W (1000 W peak), 100 hrs

Maximum SPL : Bi-amp mode:
LF: 120 dB-SPL cont avg
(126 dB peak)
HF: 127 dB-SPL cont avg
(133 dB peak)
Passive mode:
120 dB-SPL cont avg
(126 dB peak)

System Sensitivity : Passive mode: 95 dB SPL (1W @ 1m)
