High Power 2-Way
Loudspeaker with 12" Driver (100° x 100° Coverage)

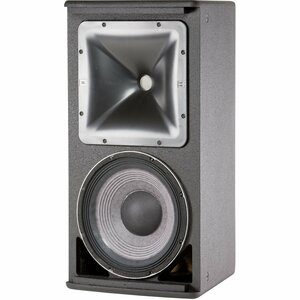

The AM7212/00 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 100° x 100° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Frequency Range ( –10 dB) : 36 Hz - 20 kHz

Frequency Response ( ± 3 dB) : 42 Hz - 20 kHz

Coverage : 100° x 100° horn

LF Driver : 2262H

HF Driver : 2432H

System Type : 12" Two - Way, High Power, Full - Range

Dimensions (H x W x D) : 711 x 369 x 458 mm (28 x 14.5 x 18 in)

Weight : 23.1 kg (51 lb)

Directivity Factor (Q) : 8.3

Directivity Index (DI) : 9.1 dB

Crossover Modes : Bi-amp/Passive switchable

Passive Crossover Frequency : 1.5 kHz

Transducer Power Rating (AES) : LF: 1000 W (4000 W peak), 2 hr
700 W (2800 W peak), 100 hrs
HF: 100 W (400 W peak), 2 hrs

Long-Term System Power Rating (IEC) : Passive mode: 600 W (2400 W peak), 100 hrs

Maximum SPL (dB-SPL, 1W @ 1m) : Bi-amp mode:
LF: 126 dB-SPL cont avg (132 dB peak)
HF: 131 dB-SPL cont avg (137 dB peak)
Passive mode:
123 dB-SPL cont avg (129 dB peak)

System Sensitivity (1W @ 1m) : Passive mode: 95 dB SPL

Nominal Impedance : 8 ohms
