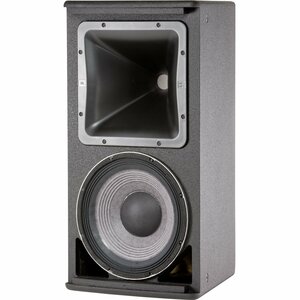

The AM7212 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Frequency Range ( –10 dB) : 36 Hz - 20 kHz
Frequency Response (±3 dB) : 42 Hz - 18 kHz
LF Driver : 2262H
HF Driver : 2432H
System Type : 12" Two - Way, High Power, Full - Range
Dimensions (H x W x D) : 711 x 369 x 458 mm (28 x 14.5 x 18 in)
Weight : 23.1 kg (51 lb)
Crossover Modes : Bi-amp/Passive switchable
Passive Crossover Frequency : 1.4 kHz
Transducer Power Rating (AES) : LF: 1000 W (4000 W peak), 2 hr 700 W (2800 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs Long-Term System Power Rating (IEC) : Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (dB-SPL, 1W @ 1m) : Bi-amp mode: LF: 126 dB-SPL cont avg (132 dB peak) HF: 133 dB-SPL cont avg (139 dB peak) Passive mode: 123 dB-SPL cont avg (129 dB peak)
System Sensitivity (1W @ 1m) : Passive mode: 95 dB SPL
Nominal Impedance : 8 ohms |
