Atlas Sound

Omni-Purpose Flanged Horn Loudspeaker (15W, w/ Transformer)

Model: APF-15T
UPC: 612079110537
Choose from matching grilles, enclosures and mounting. Rings (order separately)
Double re-entrant design provides superior audibility of voice and tone signaling
High-efficiency, 15 watt compression driver with proven record of outstanding service reliability
May be flange or recess mounted
Transformer(T) equipped version for 25, 70.7, or 100V line
Vandal and environment-resistant metal construction for outdoor or indoor use
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Model: C1PRO
Please log in to see your price

Customers who bought this product also purchased

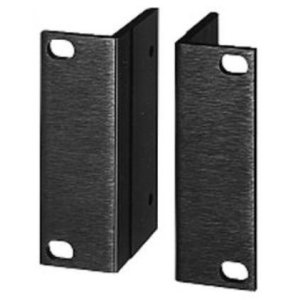

Model: MB-25B
Please log in to see your price
Model: P-912MK2UL
Please log in to see your price

Product Properties

  • Bullet points
  • Choose from matching grilles, enclosures and mounting. Rings (order separately)
    Double re-entrant design provides superior audibility of voice and tone signaling
    High-efficiency, 15 watt compression driver with proven record of outstanding service reliability
    May be flange or recess mounted
    Transformer(T) equipped version for 25, 70.7, or 100V line
    Vandal and environment-resistant metal construction for outdoor or indoor use
  • Product Type
  • Surface Mount Speaker

Description:

Provide 15 watts of continuous power handling with superior intelligibility and efficiency with Atlas Sound APF Series Omni-Purpose® loudspeakers.

Vandal-resistant units are designed for flange or recessed mounting to panels, interior/exterior walls, or ceilings.

Metal construction withstands adverse temperatures, humidity and physical abuse. For flexibility and optimum adjustment convenience, transformer-equipped Model APF-15T includes the Vari-Tap® Control/connect center with 7 position, wattage/impedance selection switch.

Weather-resistant metal construction and enclosed wiring terminals eliminate the need and cost of a backbox. However, for aesthetic consideration and retrofit convenience, models will flange mount to any standard size ceiling or wall baffle and/or enclosure capable of accommodating conventional 6" or 8" diameter loudspeakers. Model FAMT-6 mounting kit is required for 8" models.) Recessed installation may be accomplished by mounting Models APF-15 or APF-15T into a 4" or 5 1/2" deep opening, respectively, or to an L20 Series enclosure. L20 Series also includes mounting rings and baffles.

Loudspeakers are finished in grey baked epoxy.
