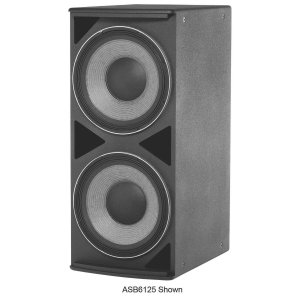

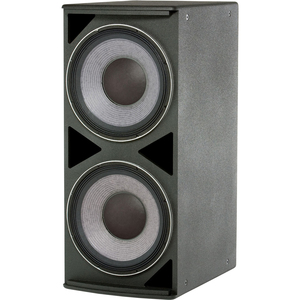

High Power Dual 15" Subwoofer (White)

The ASB6125 is a high power, lightweight front-loaded vented subwoofer enclosure housing two JBL 2265H-1 Differential Drive® dual voice coil dual gap 15" woofers. These woofers feature neodymium magnets and ultra robust cones for extra long life.

Frequency Range
(-10 dB) : 32 Hz - 1 kHz

Frequency Response
(± 3 dB) : 38 Hz - 1 kHz

Transducer Power Rating : 1600 W (6400 W peak), 2 hrs

Input Modes : Drivers Parallel / Drivers Discrete

Long-Term System Power Rating : 1350 W (5400 W peak), 100 hrs.

Maximum SPL (1m) : 35 Hz - 400 Hz: 132 dB-SPL
cont avg (138 dB peak)

System Sensitivity : 35 Hz - 400 Hz: 100 dB-SPL,
1W (2.0V) @ 1m

Nominal Impedance : 4 ohms in parallel-drive mode
2 x 8 ohms in discrete-drive mode

Low Frequency Driver : 2 x 2265H-1, 380 mm (15 in) dia.,
75 mm (3 in) Dual Coil Dual
Gap neodymium Differential Drive® drivers

Suspension Attachment : 16 points (4 top, 4 bottom, 4 each side),
M10 threaded hardware

Input Connector : NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

Environmental Specifications : Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in
vertical cabinet orientation) : 965 x 419 x 597 mm
(38.0 x 16.5 x 23.5 in)

Net Weight : 36.7 kg (81.0 lb)

Optional Accessories : M10 x 35 mm forged shoulder
eyebolts with washers
