JBL

Ultra Long Excursion High Power Dual 18" Subwoofer

Brand: JBL
Model: ASB7128
UPC: 691991011832
2 x 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
4000 watts continuous pink noise, 16000 watts peak power handling capacity
For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products
Large vent area for high output with low distortion
Parallel/Discrete switchable input mode
Ultra Long Excursion
Please log in to see your price

Related products

Model: ASB6112-WH
Please log in to see your price
Model: ASB6115
Please log in to see your price
Model: ASB6125
Please log in to see your price
Model: ASB6115-WH
Please log in to see your price

Customers who bought this product also purchased

Model: BSSBLUCARDOUT-M
Please log in to see your price
Model: BSSBLUCARDIN-M
Please log in to see your price
Model: BSSBLU806M-US
Please log in to see your price
Model: DCI4X1250N
Please log in to see your price

Product Properties

  • Active/Passive
  • 303
  • Coverage
  • Omni
  • Frequency Range
  • 20Hz-1kHz (-10dB)
  • LF Driver Size
  • 2 x 18"
  • Max Dimensions
  • 43" x 22" x 32.1"
  • Max SPL
  • 141dB
  • Nominal Impedance
  • 4Ω or 2 x 8Ω
  • Product Type
  • PA Loudspeaker
  • Sensitivity
  • 99dB
  • System Power
  • 2400W 100hrs IEC

Description:

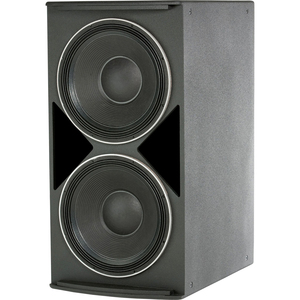

The ASB7128 is a high power, lightweight front-loaded vented subwoofer enclosure housing two of JBL's exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofers. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").

Frequency Range
(-10 dB) : 20 Hz - 1 kHz

Frequency Response
(± 3 dB) : 25 Hz - 1 kHz

Transducer Power Rating : 4000 W (16000 W peak), 2 hrs.

Input Modes : Drivers Parallel / Drivers Discrete

Long-Term System Power Rating : 2400 W (9600 W peak), 100 hrs.

Maximum SPL (1m) : 25 Hz - 200 Hz: 135 dB-SPL
cont avg. (141 dB peak)

System Sensitivity : 25 Hz - 200 Hz: 99 dB-SPL,
1W (2.0V) @ 1m

Nominal Impedance : 4 ohms in parallel-drive mode
2 x 8 ohms in discrete-drive mode

Low Frequency Driver : 2 x 2269H, 460 mm (18 in) dia.,
100 mm (4 in) Dual Coil Dual
Gap neodymium Differential Drive®, VGC™ drivers

Enclosure : Rectangular cabinet, 16 mm (5/8 in)
exterior grade 11-ply birch plywood

Suspension Attachment : 16 points (4 top, 4 bottom, 4 each side)
M10 threaded hardware

Finish : Black DuraFlex™ finish.
White available upon request.

Grille : Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

Input Connector : NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

Environmental Specifications : Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in
vertical cabinet orientation) : 1092 x 560 x 815 mm
(43.0 x 22.0 x 32.1 in)

Net Weight : 71.9 kg (158.5 lb)

Optional Accessories : M10 x 35 mm forged shoulder
eyebolts with washers.
