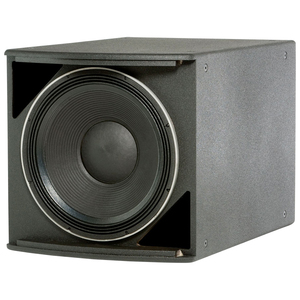

The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").
Frequency Range (-10 dB) : 22 Hz - 1 kHz
Frequency Response (± 3 dB) : 34 Hz - 1 kHz
Transducer Power Rating : 2000 W (8000 W peak), 2 hrs
Long-Term System Power Rating : 1200 W (4800 W peak), 100 hrs.
Maximum SPL (1m) : 25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity : 25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance : 8 ohms
Low Frequency Driver : 1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive® VGC™ driver
Enclosure : Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment : 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
Environmental Specifications : Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical cabinet orientation) : 546 x 560 x 815 mm (21.5 x 22.0 x 32.1 in)
Net Weight : 42.9 kg (94.5 lb)
Optional Accessories : M10 x 35 mm forged shoulder eyebolts with washers. |
