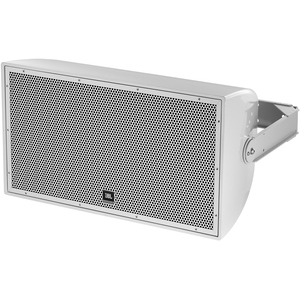

High Power 2-Way All Weather Loudspeaker with 1 x 12" LF (Gray)

The AW266 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW266 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Frequency Range (-10 dB) : 40 Hz – 20 kHz

Frequency Response (±3 dB) : 51 Hz – 18 kHz

Coverage Pattern : 60° x 60° waveguide

Directivity Factor (Q) : 15.8

Directivity Index (DI) : 12 dB

Crossover Frequency : 1.1 kHz

Long-Term System Power Rating (IEC) : 500 W (2000 W peak) 100 hrs

Maximum SPL : 126 dB SPL (132 dB peak)

System Sensitivity (1W @ 1m) : 98 dB

70V/100V Transformer Taps : 70V: 400 W, 200 W, 100W
100V: 400W, 200W

Suspension Attachment: : 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

Grille : Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.

Input Connector : CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in)
spade lugs.

Environmental Specifications: : IP56 per IEC 529

Dimensions (H x W x D in horizontal cabinet orientation) : 409 x 732 x 452 mm
(16.1 x 28.8 x 17.8 in)

Net Weight : 25.2 kg (55.5 lb)
