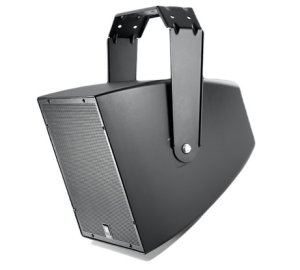

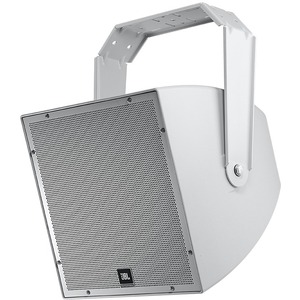

All-Weather Compact 2-Way
Coaxial Loudspeaker with 12" LF (Gray)

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Frequency Range (-10 dB) : 55 Hz – 20 kHz

Frequency Response (±3 dB) : 80 Hz – 20 kHz

Coverage Pattern : 90° x 90°

Directivity Factor (Q) : 10.1 (1 k – 16 kHz)

Directivity Index (DI) : 9.5 dB (1k – 16 kHz)

Long-Term System Power Rating (IEC) : 400 W (1600 W peak), 2 hrs.
250 W (1000 W peak), 100 hrs

Sensitivity (2.83V @ 1m) : 96 dB (Ave. 80 Hz – 20 kHz)

Maximum SPL : Direct 8?: 122 dB (peaks of 128 dB)
200 W Tap: 119 dB

Crossover Network : 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF

Nominal Impedance : 8 ohms

Transformer Taps : 70V: 200W, 100W, 50W, 25W
100V: 200W, 100W, 50W

Attachment : Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

Grille : Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.

Input Connection : CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")

Dimensions : 402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet
470 mm (18.5 in) depth with gland nut
542 mm (21.4 in) including bracket extending
to back

Net Weight : 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket

Shipping Weight : 23.4 kg (51.5 lbs)

Included Accessories : U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
