High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn

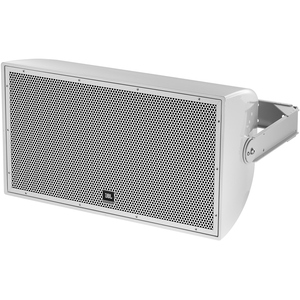

The AW295 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW295 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Frequency Range (-10 dB) : 43 Hz – 20 kHz

Frequency Response (±3 dB) : 53 Hz – 18 kHz

Coverage Pattern : 90° x 50°, rotatable waveguide

Directivity Factor (Q) : 12.6

Directivity Index (DI) : 11 dB

Crossover Frequency : 1.3 kHz

Long-Term System Power Rating (IEC) : 500 W (2000 W peak), 100 hrs

Maximum SPL : 126 dB-SPL cont avg (132 dB peak)

System Sensitivity (1W @ 1m) : 98 dB SPL

70V/100V Transformer Taps : 70V: 400 W, 200 W, 100W
100V: 400W, 200W

Suspension Attachment : 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

Grille : Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.

Input Connector : CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.

Environmental Specifications : IP56 per IEC529

Dimensions (H x W x D in vertical cabinet orientation) : 409 x 732 x 452 mm
(16.1 x 28.8 x 17.8 in)

Net Weight : 25.2 kg (55.5 lb)
