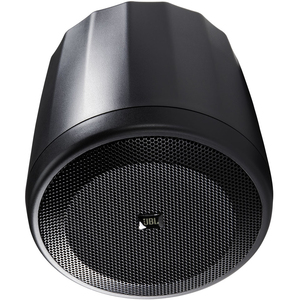

Ultra-Compact Mid-High Satellite Pendant Speaker

Ideal for visually sensitive applications, Control 62 P’s 2" driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S / T or 40 CS / T subwoofer.


Frequency Response (-10 dB) : 150 Hz – 20 kHz

Frequency Range (±3 dB) : 200 Hz – 17 kHz

Power Capacity : 50 Watts Continuous Program Power (2 hrs)
25 Watts Continuous Pink Noise (2 hrs)
30 Watts Continuous Program Power (100 hrs)
15 Watts Continuous Pink Noise (100 hrs)

Nominal Sensitivity : 87 dB (4.0 V, 1 W)
84 dB (2.83 V)

Nominal Coverage Angle : 140° (+25°/-50°)

Rated Maximum SPL @ 1m : 97 dB continuous pink noise, 103 dB peak

Rated Impedance : 16 ohms (no transformer taps)

Recommended High-Pass Frequency : 150 Hz

Transducer: Driver : 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.

Enclosure Material : High impact polystyrene

Environmental : Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per
IEC 529 – splashproof rating.

Termination : Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.

Suspension : Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).

Safety Agency Ratings : Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Dimensions : 128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.

Net Weight (ea) : 0.7 kg (1.5 lbs)

Included Accessories : Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
