JBL

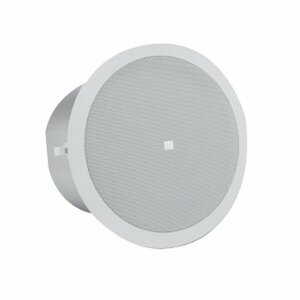

Control Contractor Series In-Ceiling Subwoofer

Brand: JBL
Model: CONTROL 19CS
UPC: 050036903943
Nested Chamber�design and Linear Dynamic Aperture�port design delivers high output from a compact enclosure
Packaged with grille, backcan and tile rails for fast installation and easy stocking
SonicGuard�overload protection allows higher operational levels and improved system reliability
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Customers who bought this product also purchased

Model: PS-24AS
Please log in to see your price
Model: ACS-55T-W
Please log in to see your price
Model: CONTROL 26C
Please log in to see your price
Model: CONTROL SB2210-WH
Please log in to see your price
Model: ACS-40TS-W
Please log in to see your price

Product Properties

  • Bullet points
  • Nested Chamber�design and Linear Dynamic Aperture�port design delivers high output from a compact enclosure
    Packaged with grille, backcan and tile rails for fast installation and easy stocking
    SonicGuard�overload protection allows higher operational levels and improved system reliability
  • Coverage
  • 180°
  • Frequency Range
  • 42 Hz - 200 Hz
  • LF Driver Size
  • 8"
  • Max Dimensions
  • 13.6" x 13.6"
  • Max SPL
  • 115 dB @ 1 m (3.3 ft) in ceiling near corner
  • Nominal Impedance
  • Product Type
  • Ceiling Speaker
  • Sensitivity
  • 95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (π/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling
  • System Power
  • 200 W Continuous Program Power

Description:

The Control 19CS is an ideal addition to any system, resulting in full-fidelity, high level sound. It uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design. Includes C-shaped support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), cutout template, paint shield, and removable locking wiring connector.

Unique Nested Chamber�design and Linear Dynamic Aperture�port design delivers high output from a compact enclosure.

JBL�s exclusive SonicGuard�overload protection allows higher operational levels and improved system reliability.

Component: Long excursion 200 mm (8 in) driver.

Packaged with grille, backcan and tile rails for fast installation and easy stocking.

Simple installation and wire connection method.
