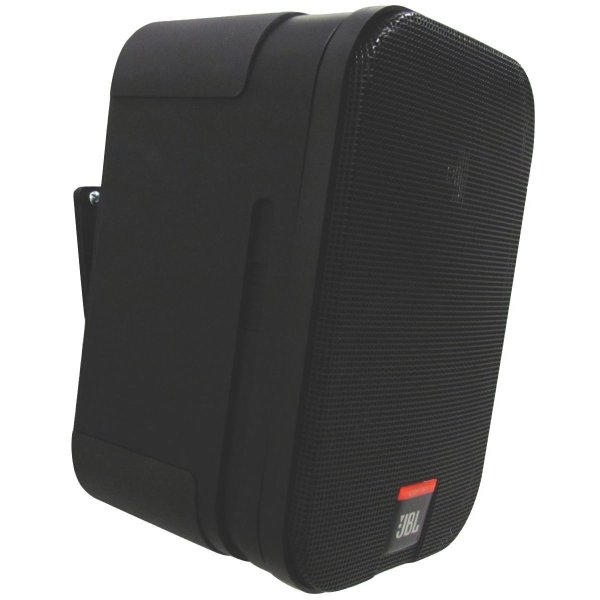

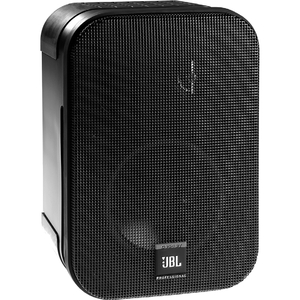

JBL

Compact Two-Way 100V/70V/8-Ohm
Loudspeaker

Brand: JBL
Model: CSS-1S/T
UPC: 050036904698
Products Variants:
10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines
8 Ohm Direct Setting
Included Wall-Mounting Bracket
Professional Drivers and Network
Please log in to see your price

Related products

Model: CSS-H30
Please log in to see your price
Model: CSS-H15
Please log in to see your price
Model: C1PRO
Please log in to see your price
Model: C29AV-1
Please log in to see your price

Customers who bought this product also purchased

Product Properties

Description:

CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.

Frequency Range (-10 dB) : 85 Hz – 18 kHz

Frequency Response (+/- 3 dB) : 120 Hz – 16 kHz

Power Capacity : 60 Watts

Sensitivity : 86 dB SPL, 1W (2.83V) at 1m (3.3 ft)

Maximum SPL : 106 dB at 8 Ohm Direct setting;
96 dB at 10W setting

Nominal Coverage : 120ºH x 120ºV

Directivity Factor (Q) : 6.2

Directivity Index (DI) : 7.9 dB

Nominal Impedance : 8 ohms (in 8? DIRECT mode, selectable on back panel)

Transformer Taps : 10 W, 5 W (& 2.5W @ 70V)

Crossover Frequency : 4.3 kHz

LF Driver : 135 mm (5.25 in) low frequency driver

HF Driver : 19 mm (0.75 in) polycarbonate dome tweeter

Input Connectors : Spring-loaded terminals

Enclosure Material : Polypropylene Structural Foam

Color : Black

Dimensions : 229 mm x 159 mm x 143 mm
(9.0 in x 6.3 in x 5.6 in)

Net Weight (each) : 2.0 kg (4.5 lb)

Shipping Weight (pair) : 4.8 kg (10.5 lb)

Included Accessories : Wall-mounting bracket assembly
