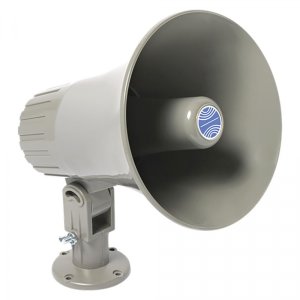

Re-Entrant Horn Loudspeaker with 30W Transformer

The GA-30T loudspeaker is a utility horn perfectly suited for voice paging and music transmission.

Double re-entrant horn construction optimizes loudspeaker output to penetrate ambient sound levels. This 30-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.

GA-30T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments.

Adjustable surface mounting bracket provides multiple (vertical & horizontal) positioning. Each assembly is supplied with 21 gauge 18" color coded wire leads for matching polarity and loudspeaker connection.

Entire assembly is gray with silver colored hardware.

Depth: 12" (30.48 cm)
Diameter: 10" (25.4 cm)
Shipping Weight: 4.67 lbs (2.12 kgs)
Frequency Response: 500 - 3,000 Hz (+5dB)
Power Taps: 2, 4, 8, 15, 30W @ 70.7V
Dispersion: 60°
Power Rating: 30 watts
Sensitivity: 103dB
