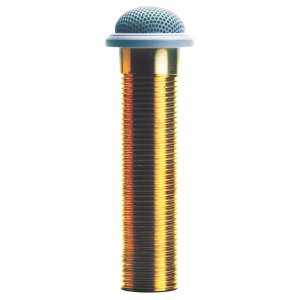

Microflex Series Low Profile Boundary Microphone (White, Omnidirectional)

The Microflex�Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed.

Output Impedance
EIA Rated at 150 Ohms (170 Ohms actual)

Output Configuration
Active balanced

Sensitivity (at 1 kHz , open circuit voltage)
Omnidirectional: -28 dBV/Pa (42 mV)
1 Pascal=94 dB SPL

Maximum SPL (1 kHz at 1% THD, 1 kilohms load)
Omnidirectional: 114 dB


Equivalent output Noise (A-weighted)
Omnidirectional: 21 dB SPL

Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
Omnidirectional: 73 dB

Dynamic Range (1 kilohm load at 1 kHz)
Omnidirectional: 93 dB

Common Mode Rejection (10 Hz - 100 kHz)
45 dB minimum

Preamplifier output Clipping level (1% THD)
-8 dBV (0.4 V)

Polarity
3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.

Weight
Net: 0.136 kg (0.30 lbs.)
Packaged: 0.374 kg (0.825 lbs.)

Environmental Conditions
Operating Temperature: -18 to 57 deg. C (0 to 135 deg. F)
Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F)
Relative Humidity: 0 to 95%

Power Requirements
MX395: 11 - 52 Vdc phantom, 2.0 mA
