PCC Series Supercardioid Stage-Floor Mic

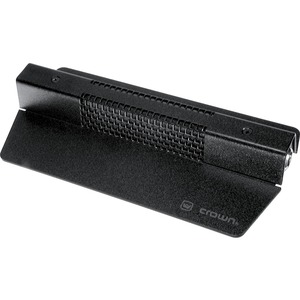

The CROWN PCC®-160 is a surface-mounted supercardioid microphone and an industry-standard for lecterns, conference tables, and news desks – wherever improved gain-before-feedback and articulation are important.

Unlike the CROWN PZM®, the Phase Coherent Cardioid®uses a subminiature supercardioid mic capsule. Its directional polar pattern improves gain-before-feedback, reduces unwanted room noise and rejects sounds from the rear. The mic capsule ensures phase coherency up to the highest frequencies, resulting in a wide, smooth frequency response. Capable of withstanding up to 120 dB SPL without distorting, the CROWN PCC®-160 will never overload in practical use. A “bass tilt” switch allows the user to tailor the low-end response for particular applications. Thanks to its low profile and black finish, the microphone becomes almost invisible in use.

Polar pattern: Supercardioid

Frequency range: 50 to 18,000 Hz

Sensitivity: 22 mV/Pa (-30 dBV)

Max. SPL: 120 dB

Equivalent noise level: 22 dB-A

Signal/noise ratio: 72 dB (A-weighted)

Impedance: 150 ohms

Connector: Switchcraft TA3F

Cable: 4,6 m (15ft.)

Finish: black

Dimensions: 17 x 8 x 2 cm (6.7 x 3.2 x 0.8 in.)

Net weight: 170 g (6 oz.)
