PCC Series Supercardioid Surface-Mount Mic

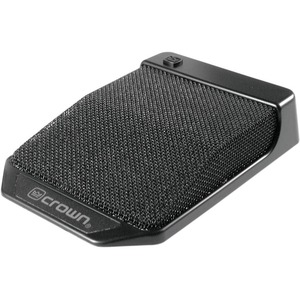

The CROWN PCC®-170 is a surface-mounted supercardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and council chambers. Because of its highly directional pickup pattern, the CROWN PCC®-170 minimizes background noise and feedback. The microphone reproduces the voice with a clean, clear and natural sound.

The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference. Clarity and reach are also enhanced. RFI suppression is included. Self-noise is low and sensitivity is very high and an RFI suppression is included. A bass-tilt switch allows the user to tailor the low-end response for particular applications.

Polar pattern: Supercardioid

Frequency range: 50 to 20,000 Hz

Sensitivity: 22 mV/Pa (-30 dBV)

Max. SPL: 120 dB

Equivalent noise level: 22 dB-A

Signal/noise ratio: 72 dB (A-weighted)

Impedance: 150 ohms

Power requirement: 12 to 48 V phantom power to DIN/IEC

Connector: Switchcraft TB3M

Cable: 170 g (6 oz.)

Finish: black

Dimensions: 8.6 x 12.3 x 2.3 cm (3.4 x 4.84 x 0.9 in.)

Net weight: 170 g (6 oz.)
