ShowMatch SM5 DeltaQ Array Loudspeaker

Name: ShowMatch SM5 DeltaQ Array Loudspeaker
SKU: SM5

Brand: Bose Professional

Model: SM5

UPC: 017817738620

3-point “quick pin” rigging – Fast, easy setup with up to 24 full-range modules and 10:1 design factor.

Bose Part # 730999-5540

Compact, portable enclosure – Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.

DeltaQ technology – defines the next-generation in loudspeaker array design with selectable coverage patterns that more precisely direct sound to audience areas for improved sound quality and vocal clarity with fewer boxes versus line arrays.

Removable side guards – provide rigging guard and hand holds for portable applications. Easily removed for permanent installs to reduce width and improve sight lines.

Replaceable waveguides – ships with 70 Deg waveguides installed with 100 Deg panels included to allow coverage change. Largest-in-class size provides better coverage and vocal clarity. Change single panel for asymmetrical patterns. Optional 55 Deg waveguides for SM5.

Rigging overlap angle adjustment – only on SM5 modules, coverage overlap or “splay” can be adjusted from 0 to 5 Deg, in 1 Deg increments, to provide long throw distance and high SPL.

Tour-sound output level – 4x Bose EMB2S compression drivers, improved with more HF output, and 2x 8-inch neodymium high-power woofers allow peak array output up to 145 dB SPL.

Please log in to see your price

Specification Sheet

Specification Sheet (Download)

Related products

ShowMatch SM20WG12 Waveguide for SM20

Model: SM20WG12

Brand:Bose Professional

Please log in to see your price

Select to compare

View

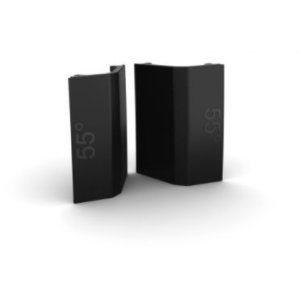

ShowMatch SM5WG55 Waveguide for SM5

Model: SM5WG55

Brand:Bose Professional

Please log in to see your price

Select to compare

View

ShowMatch SM20 DeltaQ Array Loudspeaker

Model: SM20

Brand:Bose Professional

Please log in to see your price

Select to compare

View

ShowMatch SM10 DeltaQ Array Loudspeaker

Model: SM10

Brand:Bose Professional

Please log in to see your price

Select to compare

View

Dual 6.5-inch Powered Line Array Loudspeaker

Model: SRX906LA

Brand:JBL

Please log in to see your price

Select to compare

View

Dual 10-inch Powered Line Array Loudspeaker

Model: SRX910LA

Brand:JBL

Please log in to see your price

Select to compare

View

Fixed Arcuate Active Line Array System (Black)

Model: KLA12-BK

Brand:QSC

Please log in to see your price

Select to compare

View

12" Two-Way Powered Line Array Loudspeaker System

Model: VRX932LAP

Brand:JBL

Please log in to see your price

Select to compare

View

Customers who bought this product also purchased

Product Properties

Description:

Bose Professional ShowMatch DeltaQ SM5 full-range array modules provide 5 Deg nominal vertical coverage with included field-changeable waveguides offering choice of 70 Deg or 100 Deg horizontal coverage and optional accessory 55 Deg waveguides. Replace single waveguide panel to form horizontal asymmetrical patterns. The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 – 18,000 Hz with peak array output up to 145 dB.
