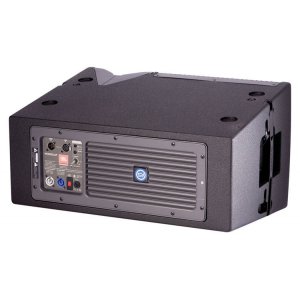

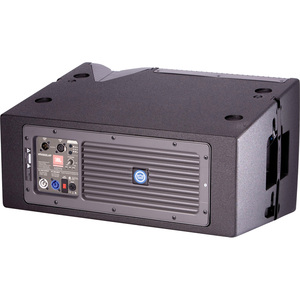

12" Two-Way Powered Line Array Loudspeaker System

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

Power Rating : 1750 Watts Peak
875 Watts Continuous

Frequency Range : 57 Hz - 20 kHz
(-10 dB)

Dimensions
(H x W x D) : 349 mm x 597 mm x 444 mm
(13.75 in x 23.5 in x 17.5 in)

Frequency Response : 75 Hz - 20 Hz
(+/-3db)

Maximum Peak Output : 136 dB SPL at 1m

Coverage Pattern : 100 x 15 nominal

DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) : LF: 750 Watts, HF: 125 Watts

DPC-2 Output Sectoin : LF: Dual-Bridged Technology™, Class D

Autio Input Connector : XLR with loop through

LF Driver : 1 x JBL 2262FF 305 mm (12 in) neodymium magnet

HF Driver : 3 x JBL 2408J, 38 mm (1.5 in)

User Controls : Input Attenuator (0-16 dB)

Signal Processings : DSP based, resident in Input Module

AC Power Operating Range : 90-132 VAC or 216-264 VAC, 50/60 Hz

AC Input Connector : Neutrik PowerCon (NAC 3MPA)

AC Loop Through Connector : Neutrik PowerCon (NAC 3MPB)

AC Current Requirements : 6A per system at 120V, 3A per system at 240V

Enclosure : 25/15 mm, 11-ply birch plywood

Suspension / Mounting : Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting

Finish : Black DuraFlex™ finish

Grille : Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam

Net Weight : 24 kg (52 lb)

Optional Accessories : VRX-AF: Suspension array frame
