18" High-Power Powered Flying Subwoofer

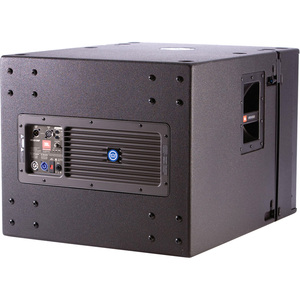

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

Power Rating : 1500 Watts Peak
LF: Dual-Bridged Technology™, Class D

Frequency Range : 31 Hz – 220 Hz

Dimensions
(H x W x D) : 508 mm x 597 mm x 749 mm
(20.0 in x 23.5 in x 29.5 in)

Frequency Response : 34 Hz – 220 Hz

Maximum Peak Output : 126 dB SPL at 1m

Bandpass Nominal Impedance : LF: 2 x 2 ohms

LF Driver : 1 x JBL 2268FF 457 mm (18 in) dual voice coil
Differential Drive® woofer with neodymium-magnet

Audio Input Connector : XLR with loop through

User Controls : Input Attenuator (0-16 dB)
Selectable 80 Hz or 120 Hz Low Pass
80 Hz High-Pass enable/disable for XLR loop thru.

Signal Processing : DSP based, resident in Input Module

System Management : DSP based limiters for mechanical and thermal protection

AC Power Operating Range : 90-132 VAC or 216-264 VAC, 50/60Hz

AC Line Voltage : User selectable: 120V/240V (-15%, +10%)

AC Input Connector : Neutrik PowerCon (NAC 3MPA)

AC Loop Through Connector : Neutrik PowerCon (NAC 3MPB)

AC Current Requirements : 6A per system at 120V, 3A per system at 240V

Enclosure : 18 mm birch plywood.

Suspension / Mounting : Optional VRX-AF line-array frame kit or 10 mm forged eyebolts

Finish : Black DuraFlex™ finish

Grille : Powder coated, black, 16-gauge perforated steel with
acoustically transparent foam

Net Weight : 38.5 kg (85 lb)

Optional Accessories : VRX-AF array frame
SRX718S-CVR: Pull-over padded cover (works with WK-4S)
SS4-BK adjustable satellite speaker pole WK-4S Caster kit
